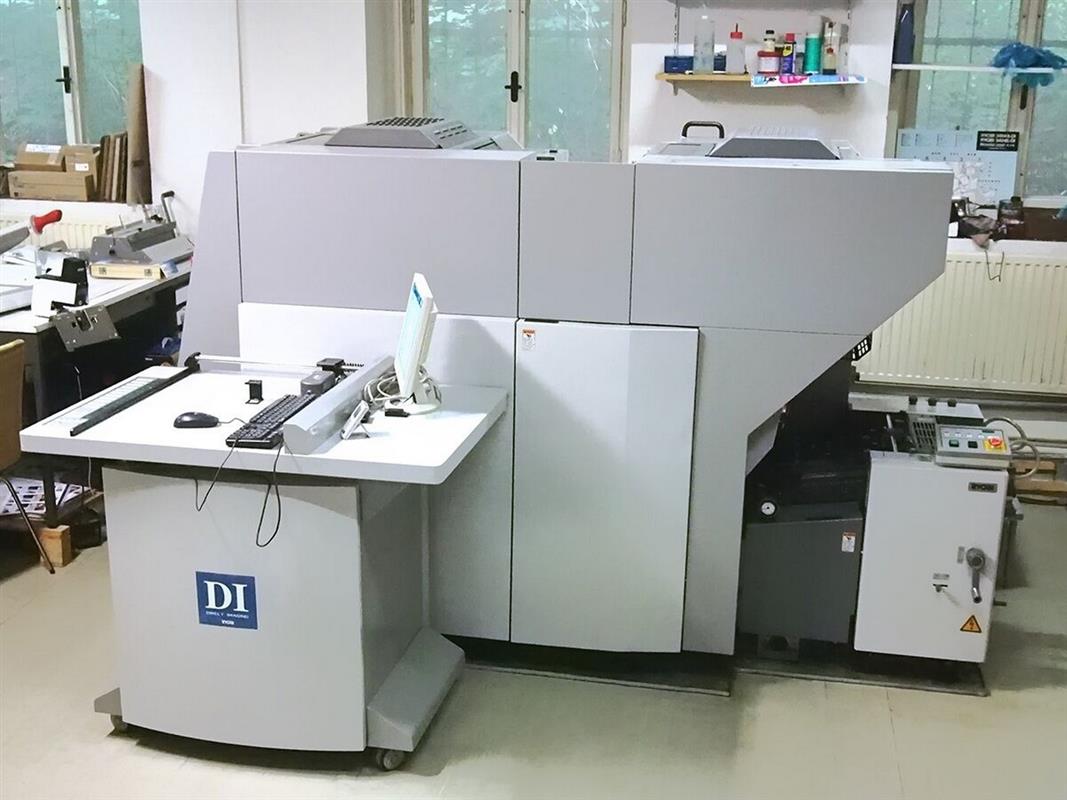

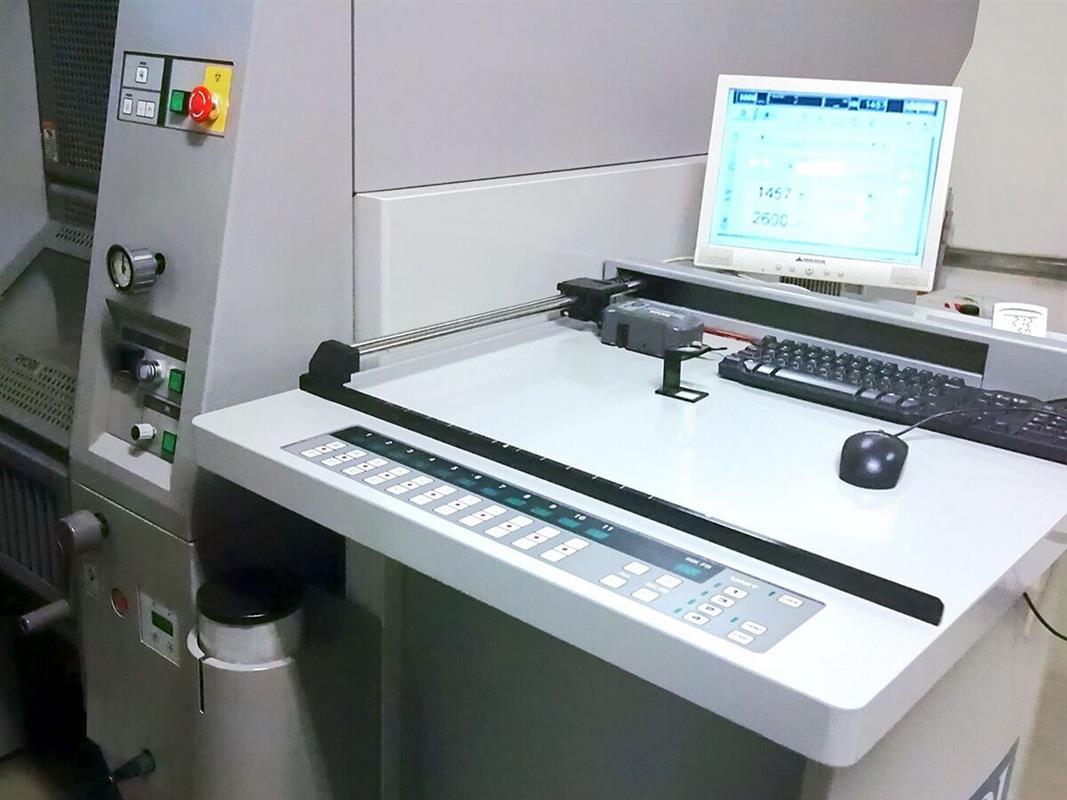

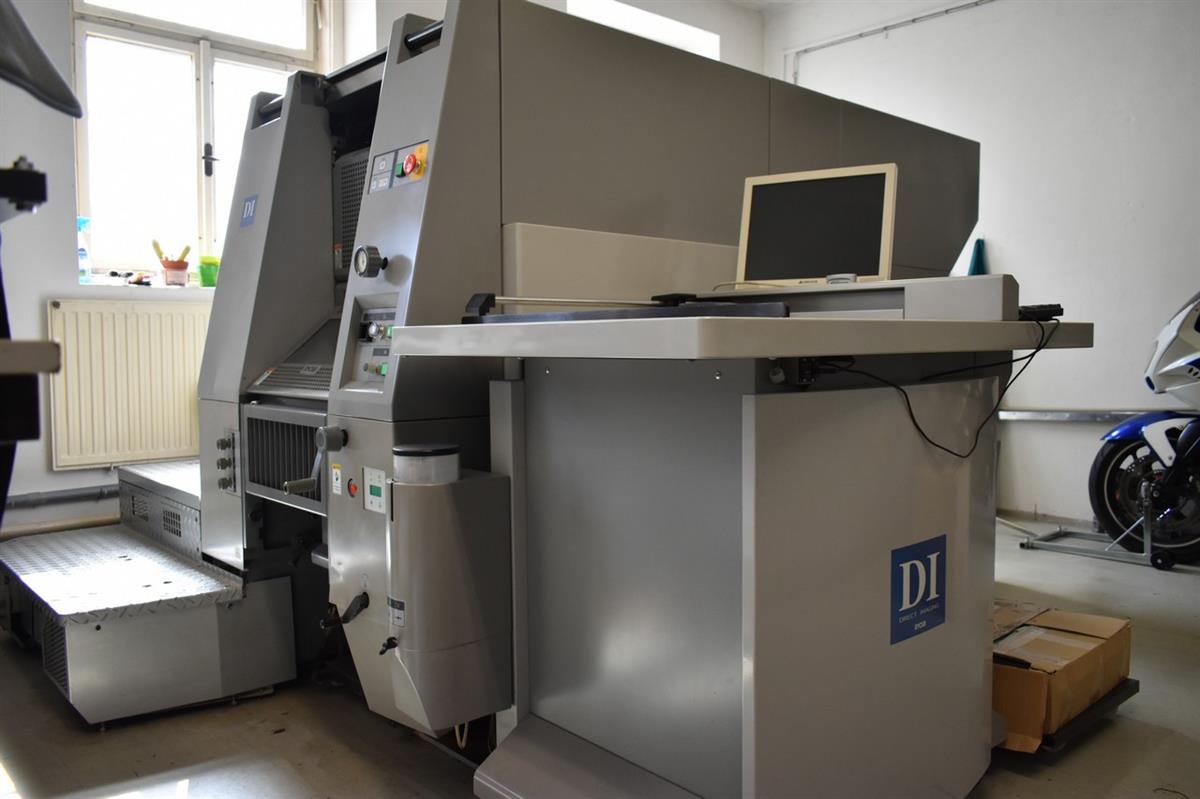

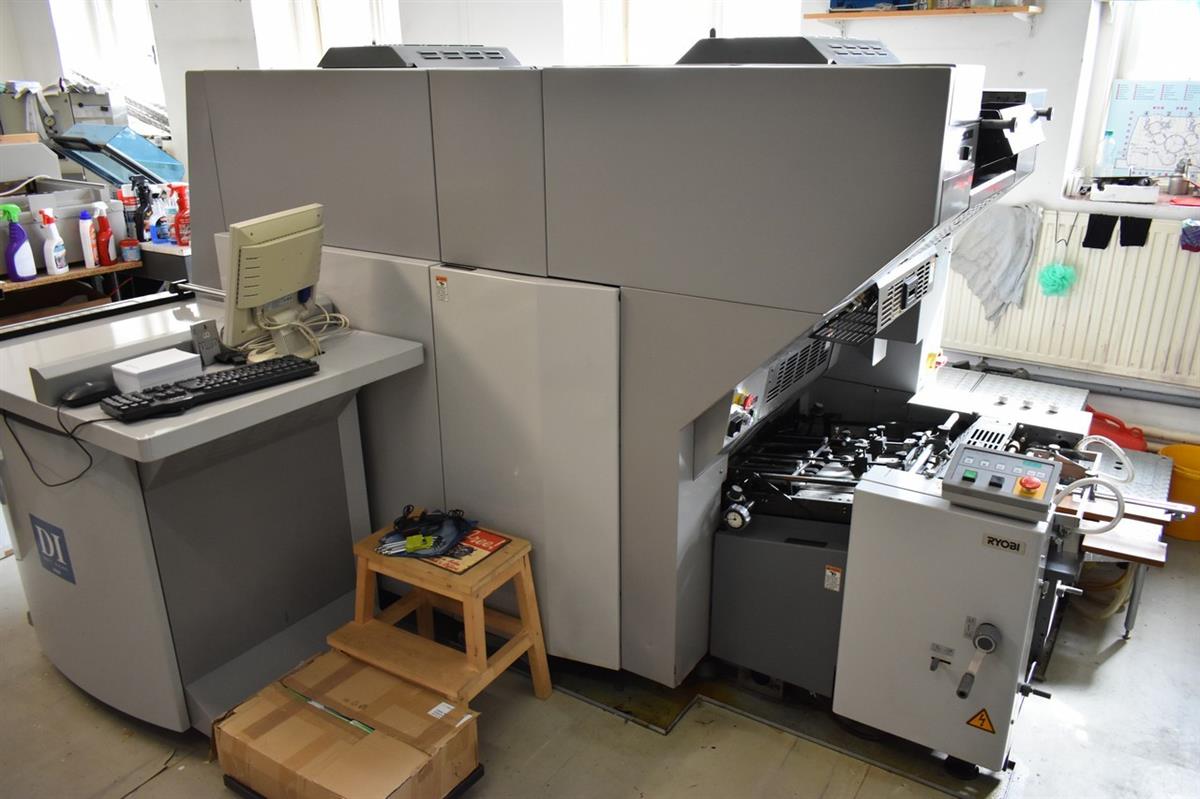

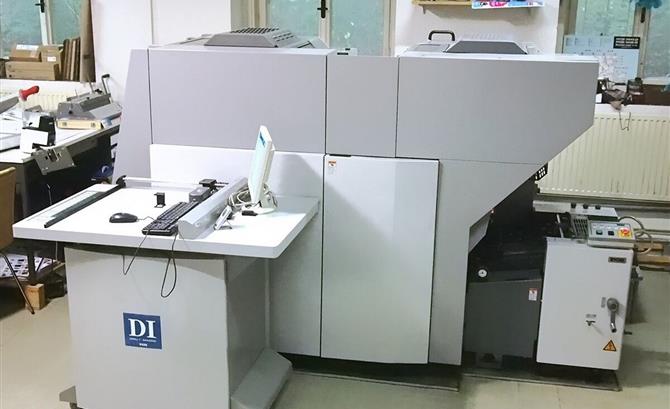

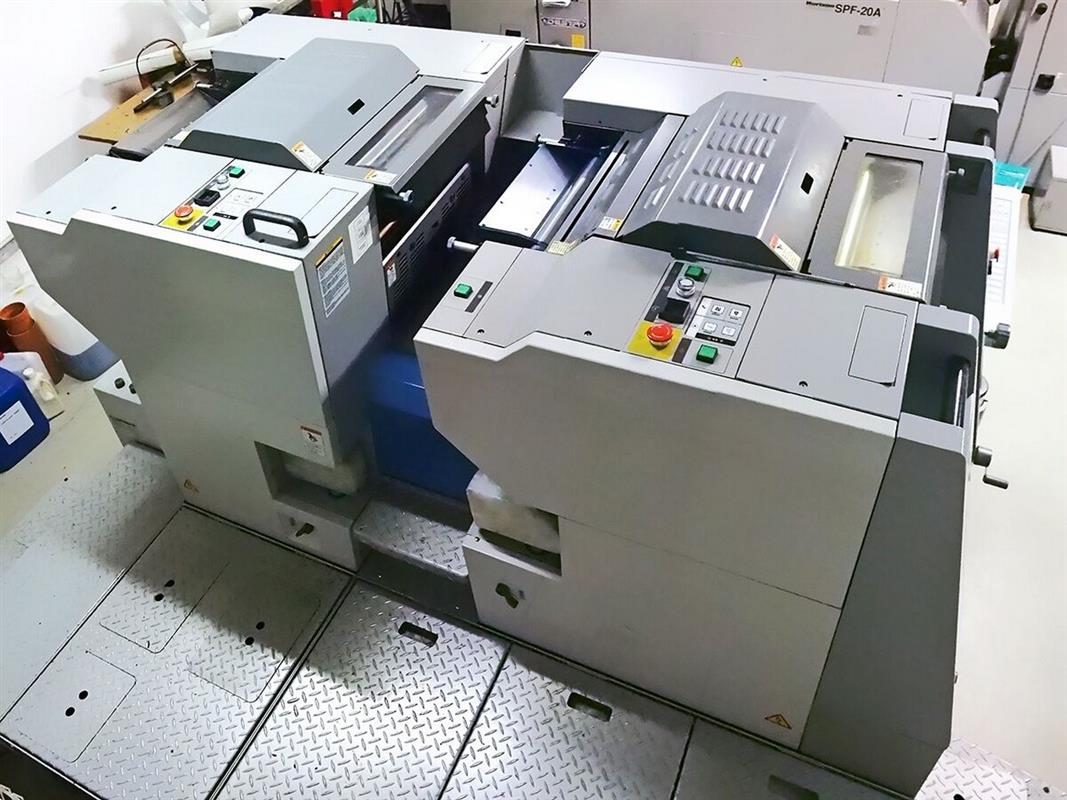

RYOBI 3404E - DI

Sheet-fed Offset Printing Machine


A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: RYOBI IMAGIX CO., Tokyo, Japan
  • Production Year: 2006
  • Number of Colours: 4
  • Max. Size: 340x460 mm (13.4"x18.1") approx. A3+
  • Max. Speed: 7000 imp./hour
  • Counter: 9 mil. imps.

More Details

  • waterless offset dampening
  • no perfecting
  • low pile extended delivery
  • ink remote control
  • fully automatic plate loading
  • ink rollers, impression cylinders, blanket cylinders automatic wash up device
  • powder sprayer
  • printing with a vertical orientation
  • printing cylinders in a V-shaped
  • ink temperature control
  • UV curing
  • densitometer
  • imaging of all four printing plates takes place directly in the machine
  • two imaging head for direct imaging
  • each head has six laser modules
  • exposure of the plates provides a total of 24 laser beams
  • wavelength 830 nm
  • thermal plates in rolls
  • min. 28 plates on role
  • height of the stack in the delivery max. 450 mm

Condition of the Machine

  • Perfect condition, only shortly used machine.
  • Dismantled and stored.
  • Availability: immediately
  • Advantages of the Machine: small space requirements
  • Sale Reason: production reduction
  • Work Experiences: printing paper thickness from 0.06 to 0.3 millimeters
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.


If you would like us to arrange Turnkey Dismantling, Loading, Transport or Installation for you – See Services
