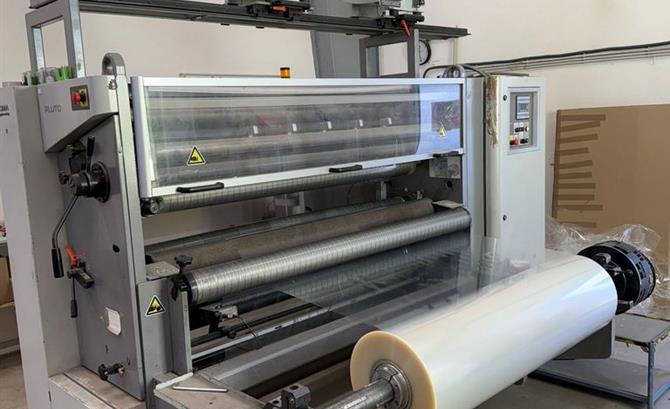

SOMA PLUTO
Slitter Reel to Reel
#26531
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Manufacturer: SOMA spol. s r.o., Lanskroun, Czech Republic
- Production Year: 2006
More Details

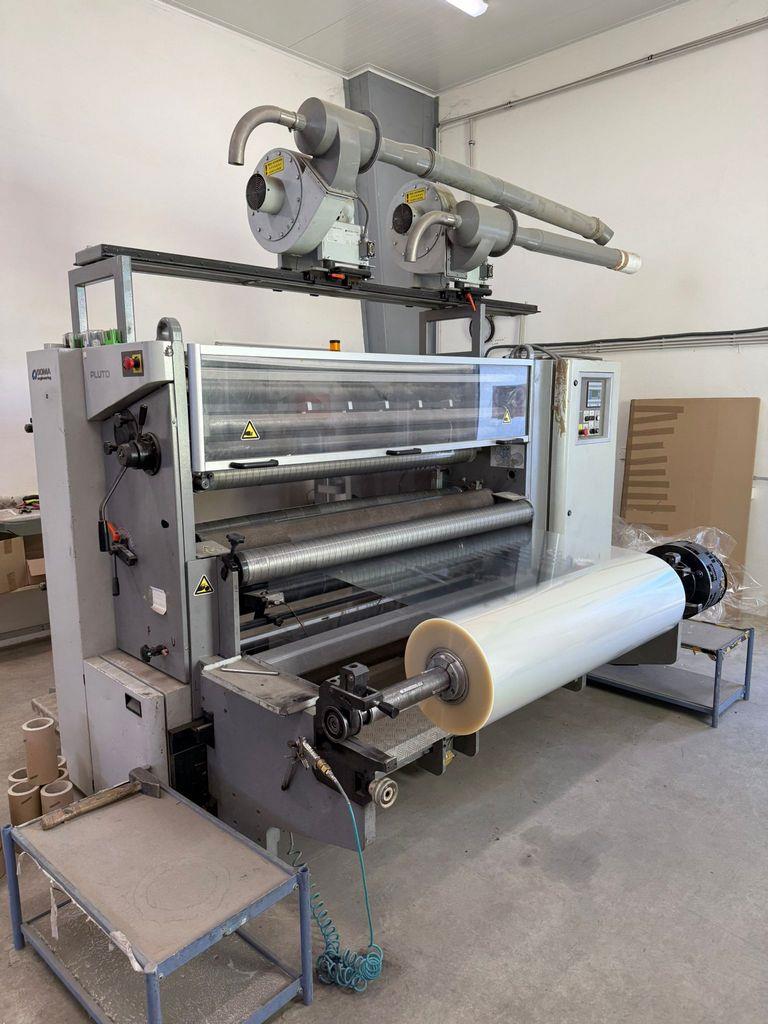

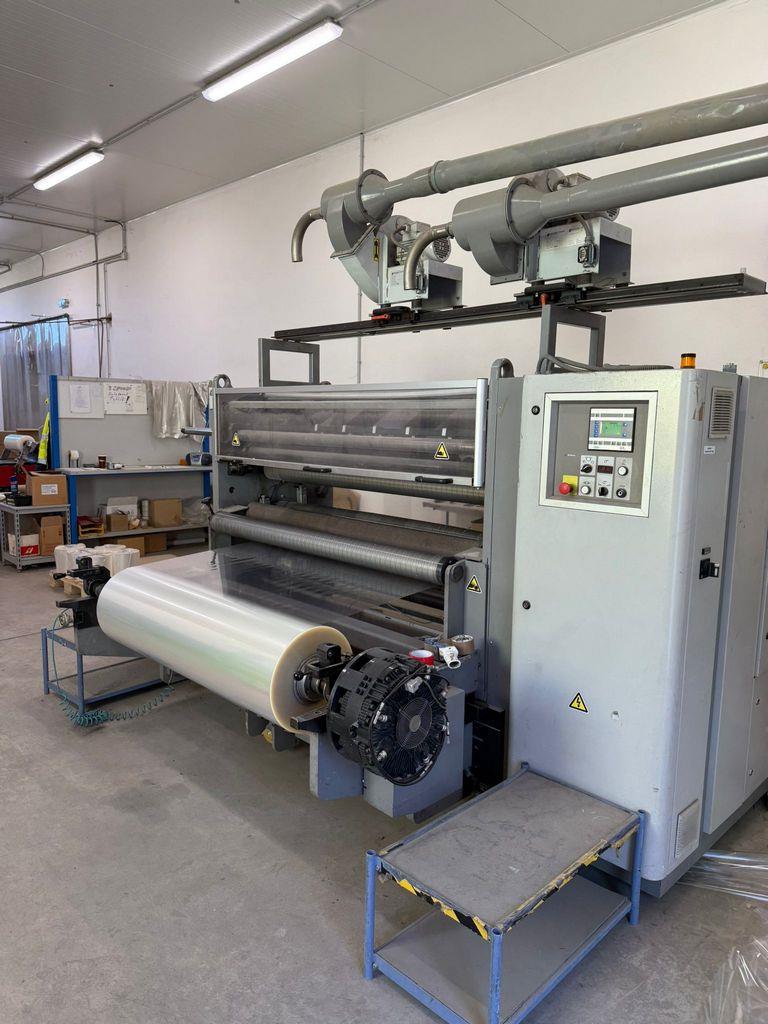

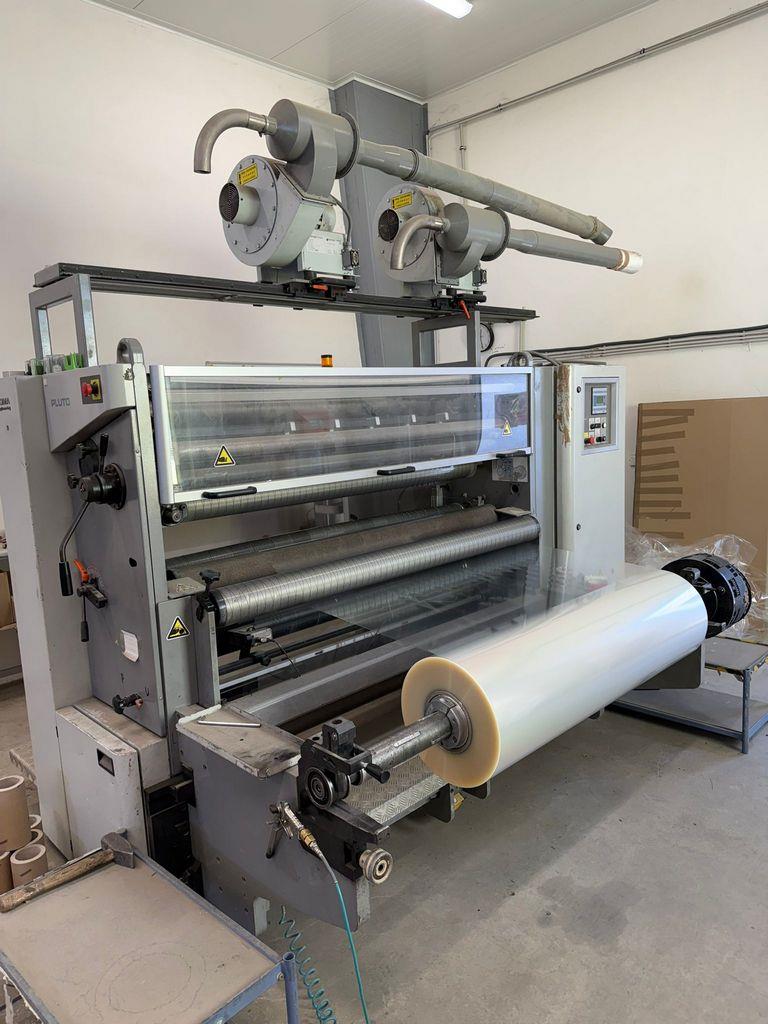

- The SOMA PLUTO is a slitter rewinder designed for processing paper, films and laminated materials. It unwinds a master roll, slits the web and rewinds finished rolls.
- Technical Parameters
- Maximum web width: 1600 mm
- Maximum unwind roll diameter: 1000 mm
- Maximum rewind roll diameter: 600 mm
- Core diameter: 76 mm
- Maximum speed: 400 m/min
- Machine weight: approx. 4300 kg
- Power supply: 400 V, 3PE AC, 50 Hz
- Operating current: 33 A
- Installed power: 23 kW
- Operating power consumption: 17 kW
- Unwind Section
- Automatic web tension control using a pneumatic dancer system. Pneumatic disc brake. Pneumatic expanding shaft. Bi-directional unwinding. Optional web guiding system.
- Slitting and Transport Section
- Driven bowed roller, rubber-coated drive roller, razor blade holders with oscillation mechanism, grooved bottom knife shaft and optional rotary knife system.

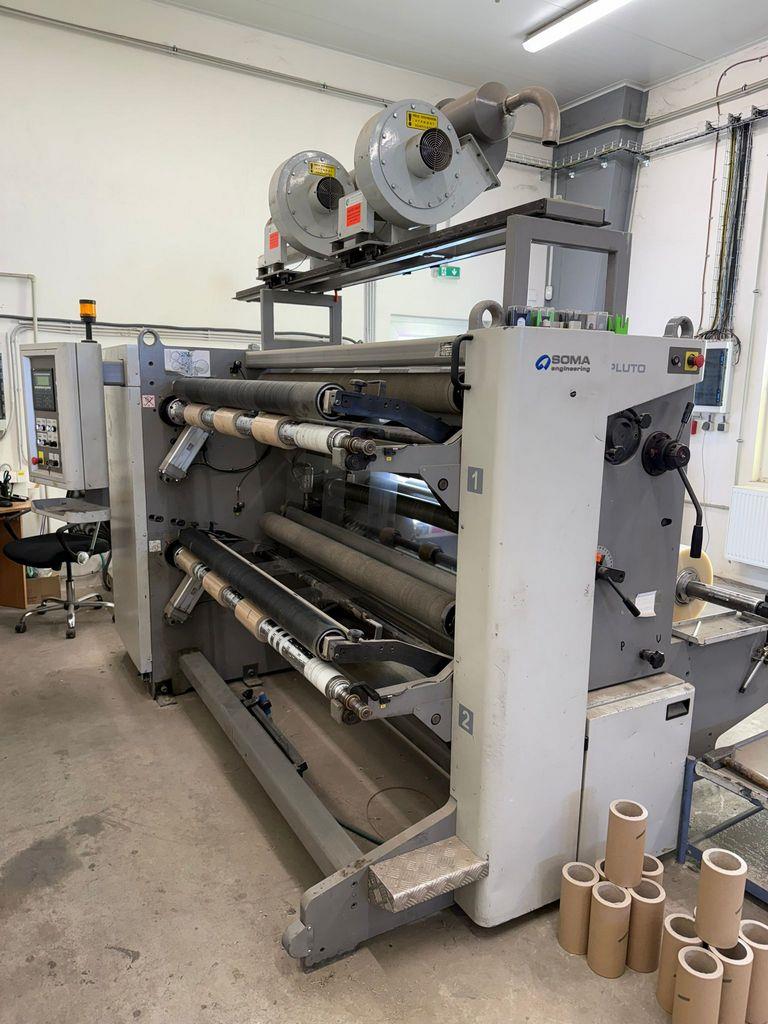

- Rewind Section
- Two rewind shafts arranged vertically. Automatic rewind tension control. Pneumatically operated shaft supports. Friction rings and automatic nip pressure regulation.
- Drives
- AC motors controlled by frequency inverters. Main drive powers the transport roller, knife shaft and bowed roller. Separate rewind drive.
- Electrical System

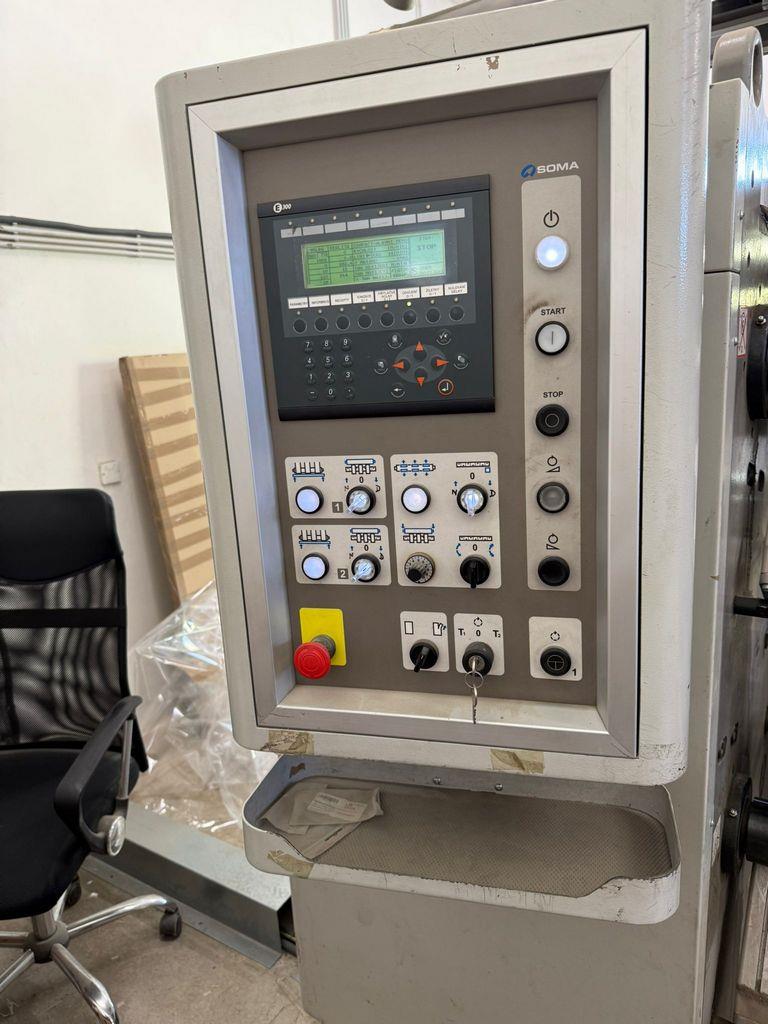

- Mitsubishi MELSEC PLC, operator panel, auxiliary panel, recipe storage and inverter-controlled drives.
- Process Materials
- Paper, PP/PET films, LDPE, HDPE, aluminium foil and multilayer laminates.
- Pneumatics and Safety
- Operating pressure 0.5–0.8 MPa. Machine protection IP43, control section IP54. Maximum noise level 85 dB(A).
Condition of the Machine
- Functional, condition and wear and tear according to its age, well maintained.
- Can be seen running.
- Availability: immediately
- Sale Reason: production reduction
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
