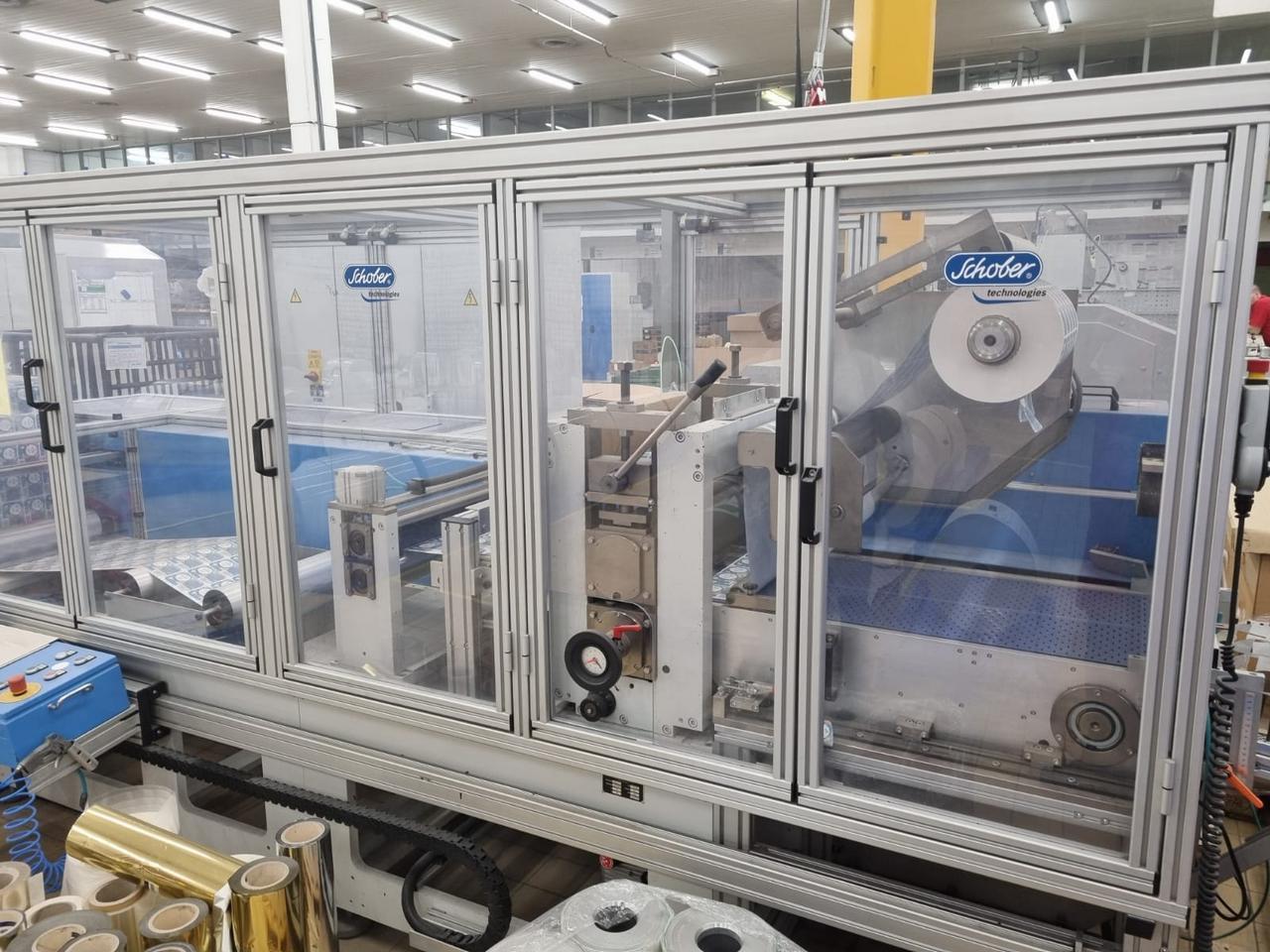

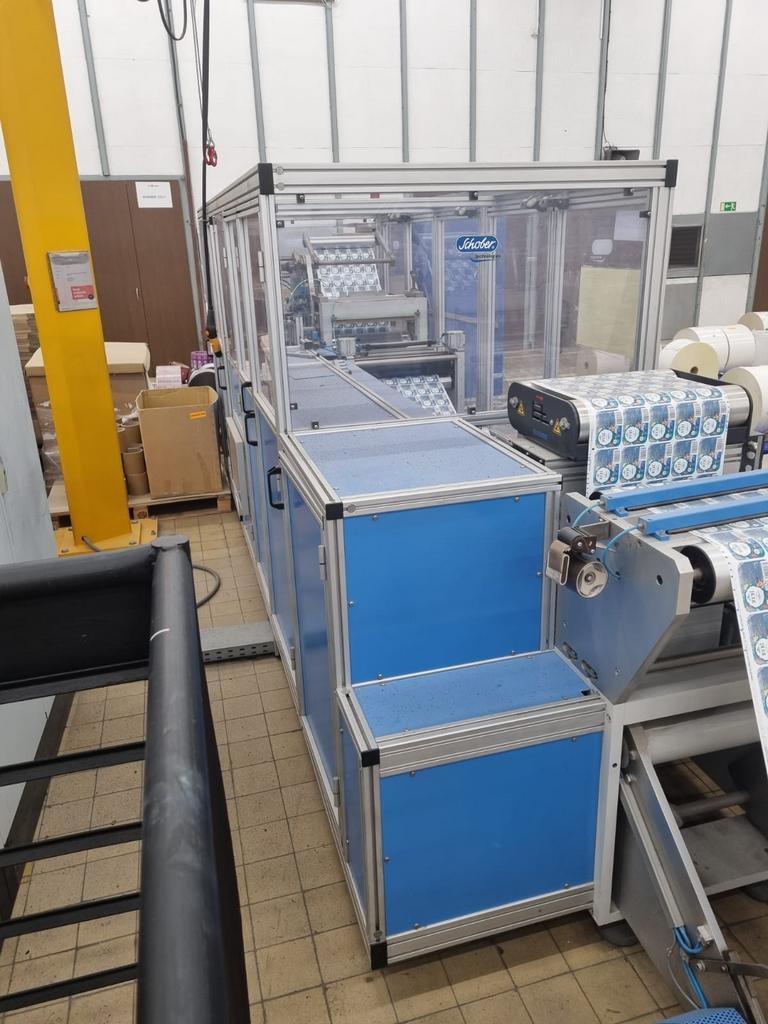

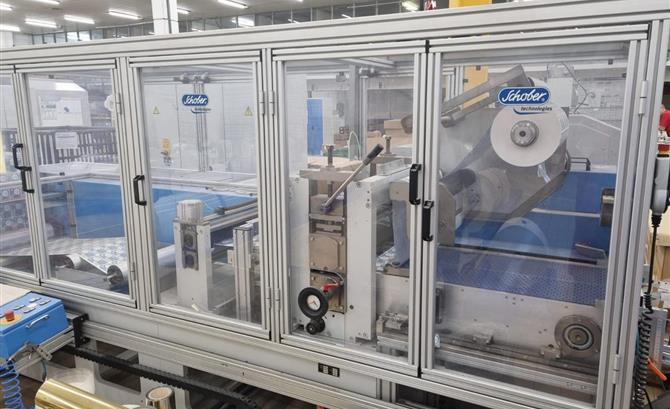

SCHOBER RSM 410
Label Punching Machine
#24547
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 2011
More Details

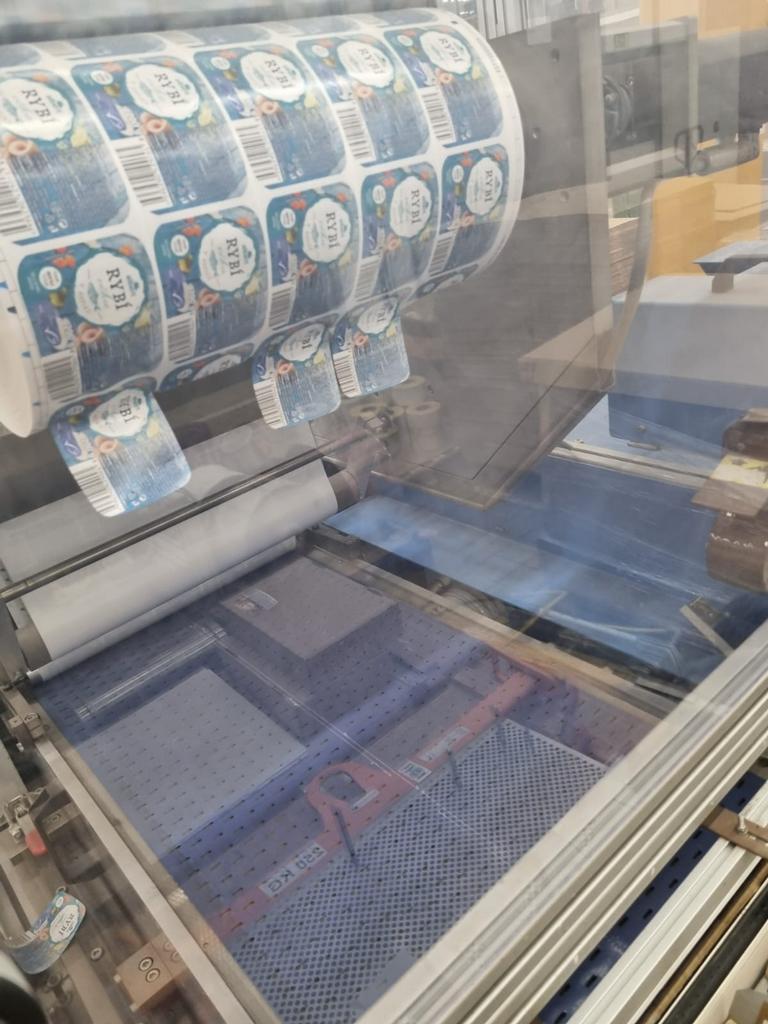

- die-cutting unit located between the infeed and outfeed units
- die-cut material is still in tension
- material thickness 40 μm - 240 μm
- working width 410 mm
- speed max 100 m/min
- 3 pcs of magnetic cylinders with rapport 20" (508 mm), 22" (558.8 mm) and 24" (609.6 mm)
- 1 pc of magnetic cylinder 24" (609.6 mm) with drilled holes for blowing off the cut material, width only 360 mm
- M-stack unloading: using a star (pocket wheel) on an auxiliary table in a horizontal position
- S-stack unloading: using a star on an auxiliary belt in a vertical position
- 2 sizes of star wheel
- 6-pocket wheel product length 105 - 160 mm
- 4-pocket wheel product length 160 - 215 mm
- Unwinding shaft for cores with an internal diameter of 76 mm and 150 mm
- Product counter
- After cutting the preset number of products, the machine stops (for small loads) or the machine gives an audible signal without stopping (the operator removes products or inserts a sign between products)
Condition of the Machine
- Functional, condition and wear and tear according to its age, well maintained.
- Can be seen running.
- Availability: immediately
- Sale Reason: production reduction
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
