Cold-set Web Offset Printing Machine


Special Offer
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: MAN Roland websystem GmbH, Ausburg, Germany
  • Production Year: 2008
  • Number of Colours: 4
  • Cylinders Circumference: 560 mm
  • Cut-off: 560 mm
  • Number of Pages: 56
  • Max. Speed: 75000 imp./hour

More Details

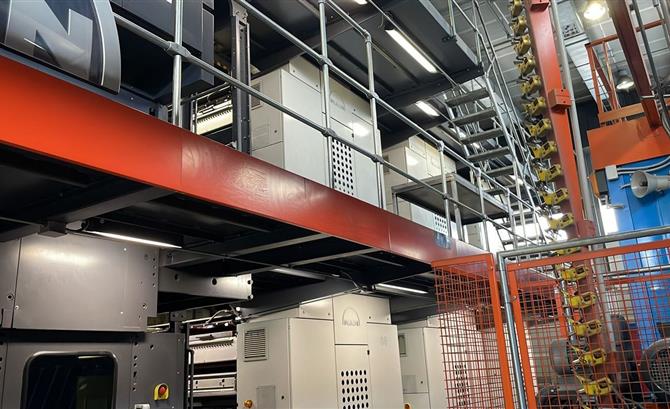

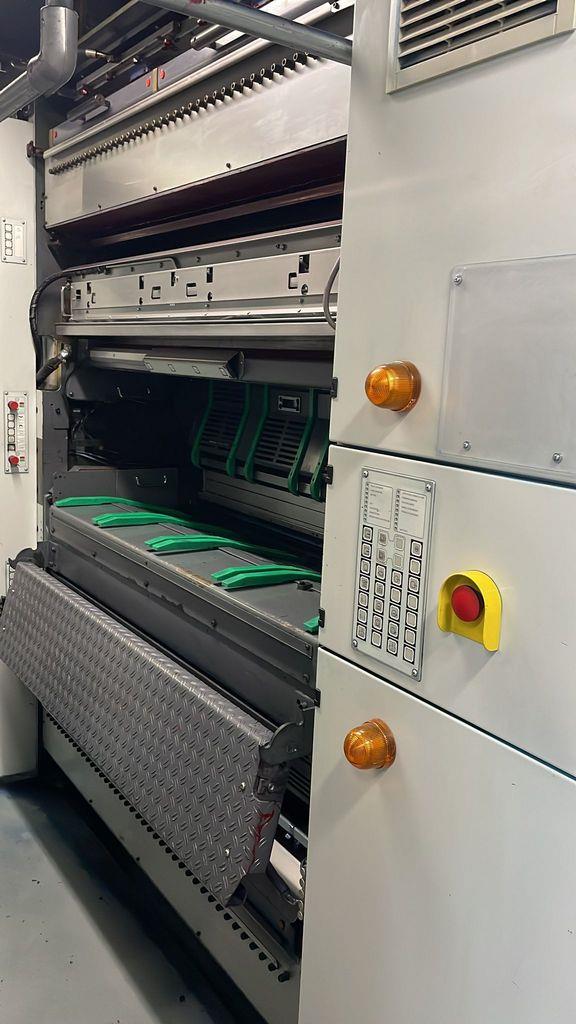

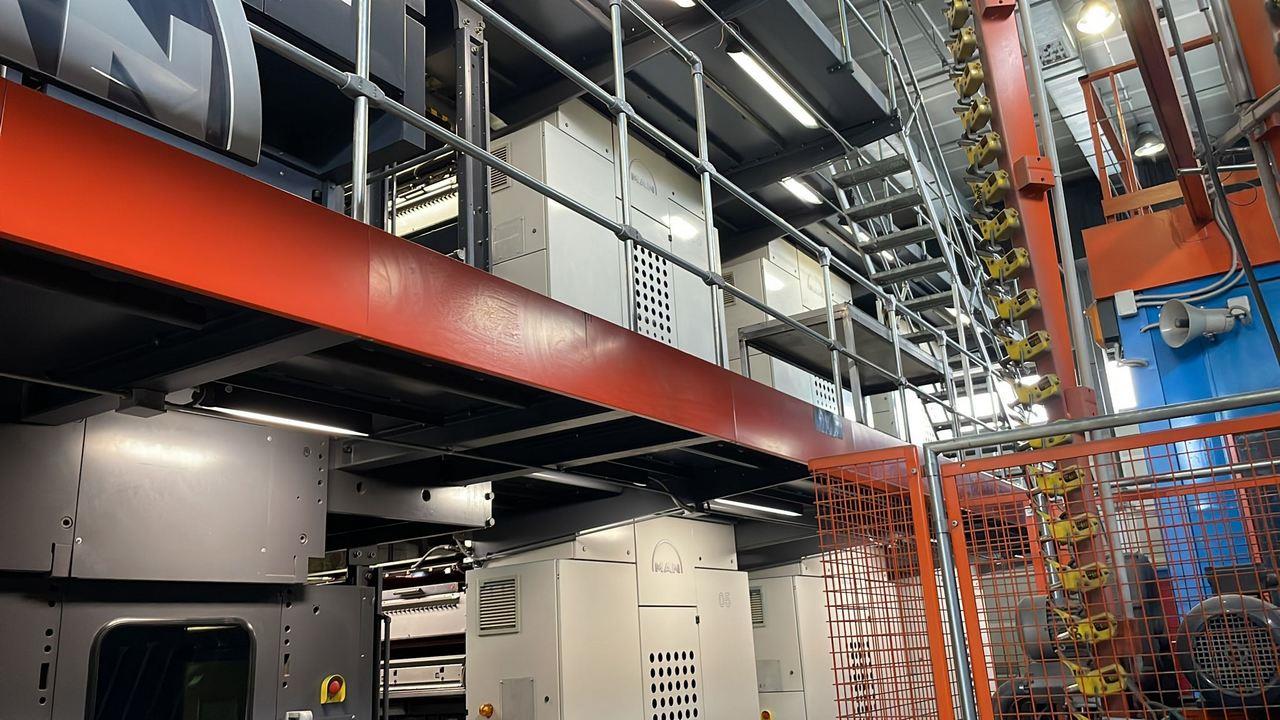

  • 7 printing towers. Each tower can print one web 4/4 colours

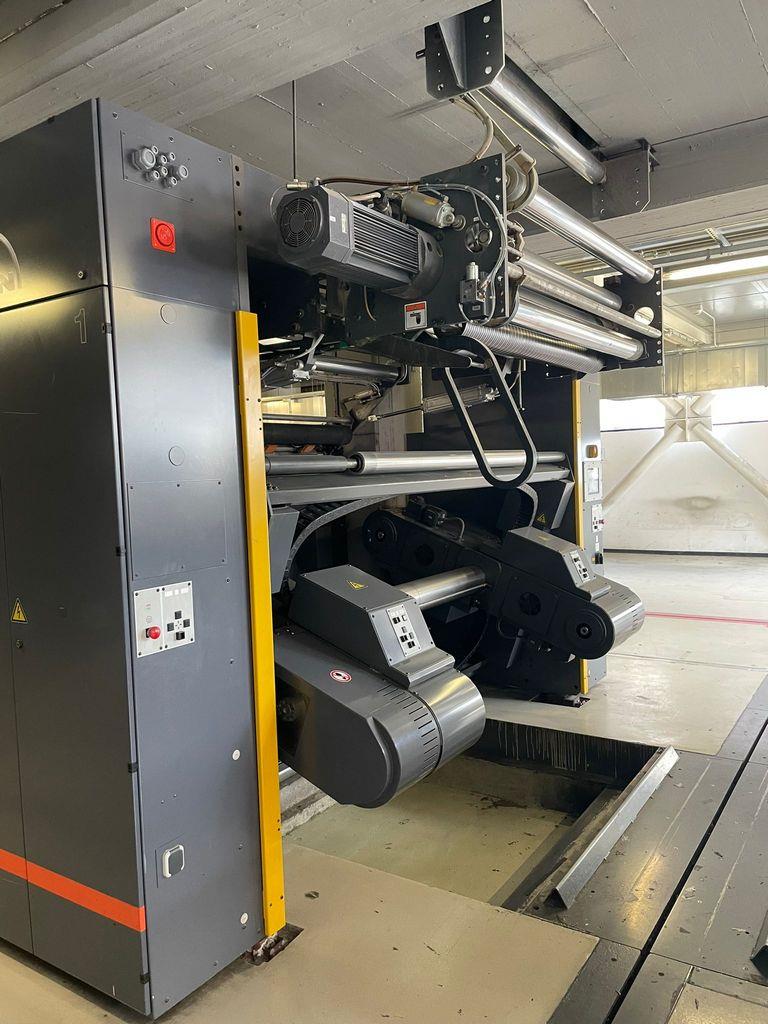

  • 7 MAN Roland reel splicers, type CD 13, reel diameter 1270 mm
  • 7 MAN Roland web infeed units
  • 7 MAN Roland fully automatic webbing up systems
  • 5 REGIOMAN printing towers, each designed as eight (8) couple units, for printing of 1 x 4/4 colours on one (1) web

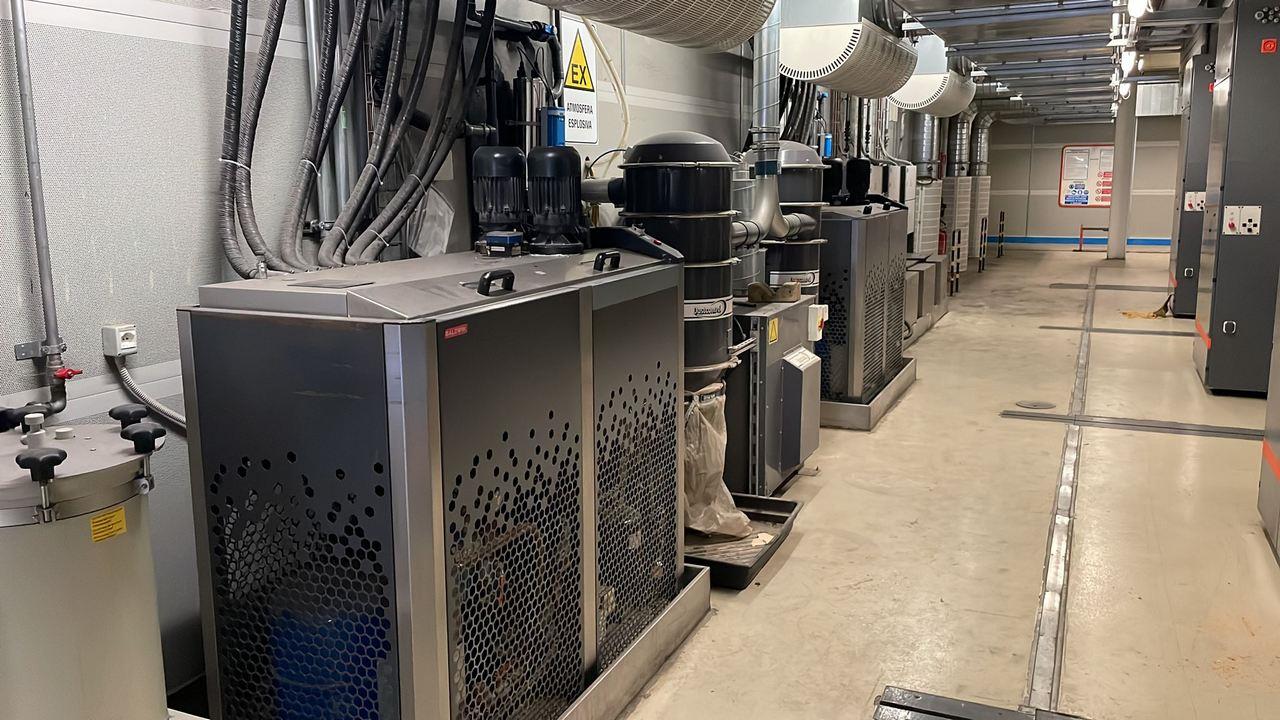

  • 2 additional REGIOMAN printing towers („quick page change“), the REGIOMAN printing towers are with automatic washing devices, Oxydry make with ink leveling supply and control system, MAN Roland/Technotrans make 2 dampening solution supply sytems, Baldwin make, type Basicliner
  • 1 automatic Tension Control System, TECOSYS
  • 1 complete web lead equipment
  • 1 triple-wide turner bar unit with 6 pairs of turner bars and baywindow device
  • 1 double-wide turner bar unit with 4 pairs of turner bars and baywindow devices
  • 1 folder superstructure, 3 formers wide, with formers of 70 degree
  • 7 automatic cut-off register controls, make Grafikontrol, type CR 19
  • 5 automatic colour register controls, make Grafikontrol, type CR20
  • 1 dust extraction unit
  • 1 MAN Roland folder, jaw system 2:5:5, type KFZ 96
  • 1 drive system consist of multiples AC motors
  • 1 press control and process electronic, MAN Roland make, type PECOM 2000, consisting of 3 press control consoles with Production Planning Manager (PPM), with Prepress Link (CIP 3 interface), Colour Preset and Production report
  • 1 semi automatic plate bender, MAN Roland make
  • 1 automatic plate punch, MAN Roland make
  • 1 equipment for uninterrupted power supply (USV)
  • spare parts, tools and manuals as available at the present place of installation.

Condition of the Machine

  • Very good condition, well-maintained.
  • Can be seen running.
  • Availability: immediately
  • Sale Reason: production reduction
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.


If you would like us to arrange Turnkey Dismantling, Loading, Transport or Installation for you – See Services
