KOMORI LR 438/625SI
Heat-set Web Offset Printing Machine
#X 8054
Sold
Machine CV Download the offer as PDF
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 1995
- Number of Colours: 4
- Web-width: 965 mm
- Cut-off: 625 mm
More Details
- unwinder of rolls with a monitor and integrated feed, synchronisation of printing plates
- registration system Komori
- semi-automatic plate insertion
- automatic inking rollers wash up device
- detection of broken paper
- device for dosing of moistening solution
- drying with additional combustion of emissions, cooling rollers
- folding section for A3, A4 and A5 products, motorised readjustment of the folding section, application of silicon onto both sides of the roll
- additional folding section, processing of half width of the roll
- moistening or application of glue onto paper, camera system for setting and register control, control panel
- system of print quality control
- automated functions for print preparation
- system for orders administration and diagnostics
- scanner of printing plates
- bender of plates
- perforator of films/plates
- automatic offset blankets wash up device, finishing section Rota Schneider
- Meg DLC paster with Megaview and integrated infeed

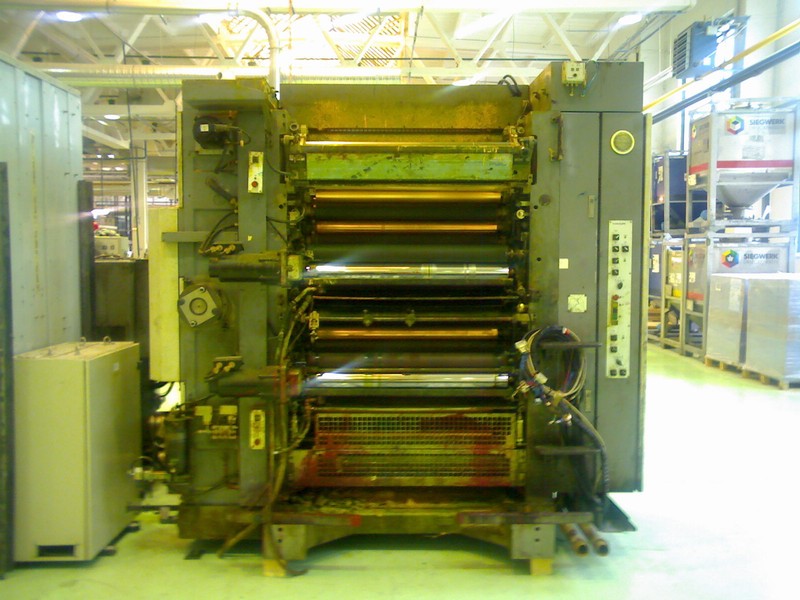

- 4 Komori blanket to blanket print units
- Komori unit phase adjustment
- Komori ceramic ink duct rollers
- Komori ink duct kick-back system
- Komori motorised plate cylinder cocking
- Komori plate mounting register pin system, semi-automatic plate changing
- ink cylinders automatic wash up device
- Royce dampening and metering device and mixer, Megair 8m dryer and Megatherm 5m afterburner, Komori CF-38/625 chill rolls unit with web guide, Komori Ribbon-deck
- Komori control console
- Komori print quality control system
- Komori auto makeready functions type III including KMS III
- Komori CF38/625 folder for A3, A4 and A5 products
- Komori FMC (Folder Makeready Controller)
Condition of the Machine
- Functional, complete.
- Dismantled and stored.
- Availability: immediately
- Sale Reason: purchase of a new machine
-
Work Experiences:
Machine in DRUPA 1995 configuration
Main web offset machine in the company -
The Last Operator´s Opinion:
good maintenance
stored from 2009 -
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
