HORIZON CABS 5000

Perfect Binder

#24501

HORIZON CABS 5000
Special Offer Video
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: Horizon International Inc., Kyoto, Japan
  • Production Year: 2008
  • Max. Size/Width: 330x260 mm (13.0"x10.2")

More Details

  • Gatherer - sig. size
  • max: 330 x 260 mm
  • min: 148 x 128 mm
  • Binder - book size
  • max: 400x330 mm manual (portrait)
  • max: 330 x 250 mm auto
  • min: 148 x 105 mm
  • max: 330 x 320 mm manual (landscape)
  • min: 135 x 185 mm
  • Book thickness 1 - 45 mm
  • Open cover size
  • max: 400 x 660 mm
  • min: - 135 x 220 mm
  • Mechanical speed: max: 5.000 cycles/hr. auto
  • Trimmer, Book sizes
  • max: 330 x 330 mm untrimmed
  • max: 300 x 300 mm trimmed
  • The machine further includes:

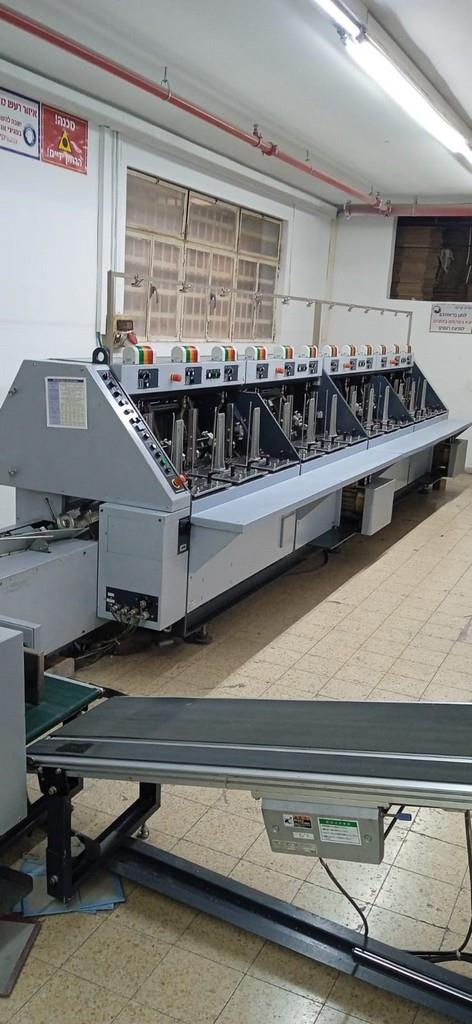

  • MG-60H Gatherer with 12 top-loading, bottom-feeding stations
  • suction & grip arm feeding from single sheets up to 32pp sections
  • misfeed & double sheet detection system
  • SB-15 Binder with hand fed station and 15 clamps
  • LCD screen operator console for various functions/set-ups
  • SI-15 book block sensor unit for auto system set-ups & quick book size/thickness make-ready
  • auto cover score & register settings from data input
  • milling & roughing station with DB-15 milling blower unit
  • EVA hot-melt pre-melt unit
  • EVA hot-melt spine glue unit with side glue discs
  • pile cover feeder with double sheet detection
  • LD-15 lay-down delivery belt
  • PP-101 pre-stacking unit with approx. 9m conveyor to
  • HT-101 Automatic three knife trimmer
  • LCD screen operator console for various functions/set-ups
  • quick book size/thickness make-ready unit
  • SSP-100 silicone spray unit
  • roller delivery unit

Condition of the Machine

  • Functional, condition and wear and tear according to its age, well maintained.
  • Still in production.
  • Availability: immediately
  • Sale Reason: purchase of a new machine
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
