HORIZON BINDER SB-09 V / PUR

Perfect Binder

#24505

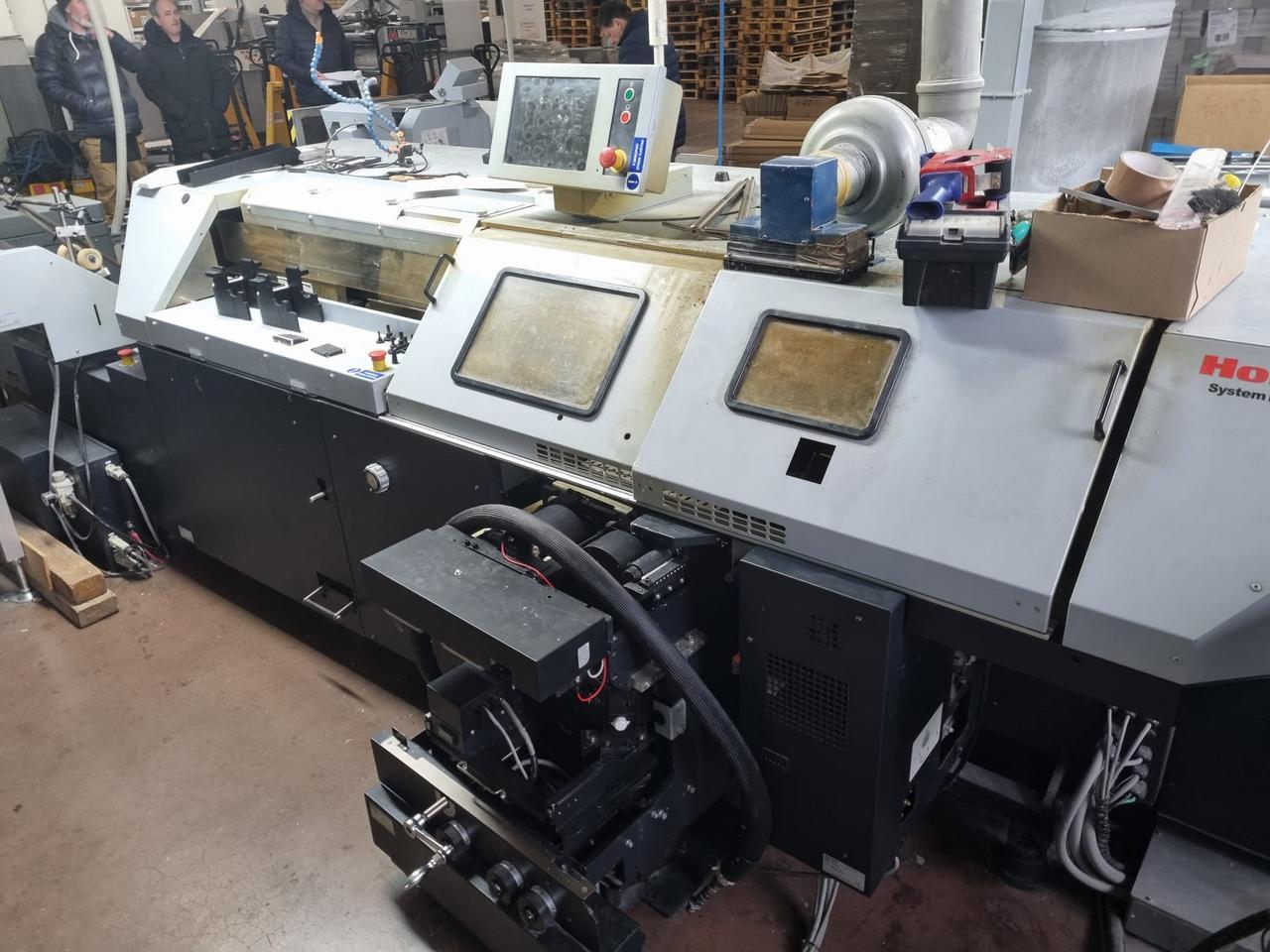

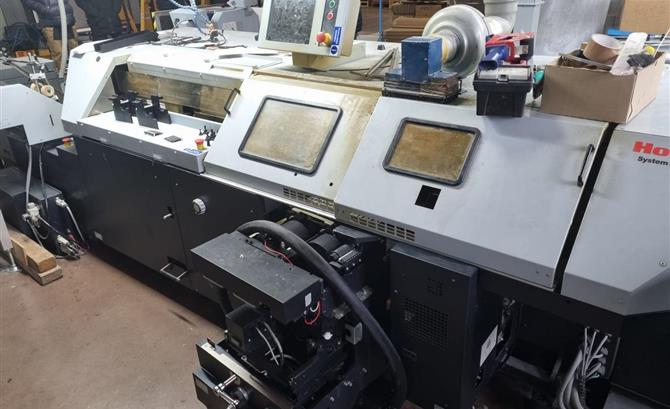

HORIZON BINDER SB-09 V / PUR
Special Offer
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: Horizon International Inc., Kyoto, Japan
  • Production Year: 2018
  • Max. Size/Width: 400x280 mm (15.7"x11.0")
  • Counter: 5 mil. revs.

More Details

  • 9 clamps perfect binder SB-09 V (PUR) with automatic adjustment according to the width of the book block
  • binding with milling, without milling, binding without envelope is also possible
  • PUR gluing (only)
  • the perfect binder is equipped with a feeder for pre-glued book blocks
  • the feeder is equipped with a camera to read the EAN code for pairing the block with the cover
  • the cover feeder is an integrated part of the SB 09 - V
  • perfect binder is equipped to read the EAN code of covers
  • book block - portrait offline max. spine length 400 x height 280 mm
  • min length of spine 148 x height 105 mm
  • in-line max spine length 330 x height 250 mm
  • max length of spine 148 x height 105 mm
  • book block offline max book spine length 330 x 320 mm height
  • max. length of spine 135 x height 185 mm
  • offline book thickness 1 - 45 mm
  • inline book thickness 1 - 45 mm
  • cover size max: 400 x 660 mm
  • cover size min: 135 x 220 mm
  • cover paper 82 - 302 gsm
  • chalk paper 105 - 348 gsm
  • folded covers cannot be feeded
  • stack height of covers max. 130 mm
  • depth of cut of leveling cutter max. 4 mm
  • three knife trimmer HT - 1000 V, in-line, fully automatic
  • 5 million books were produced on the line

Condition of the Machine

  • Very good condition, well maintained, worn out according to its age.
  • Not in production but still plugged in.
  • Availability: 01/03/2024
  • Sale Reason: closing company
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
