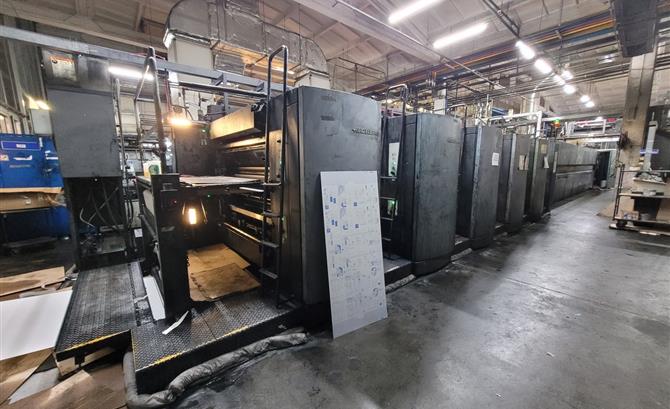

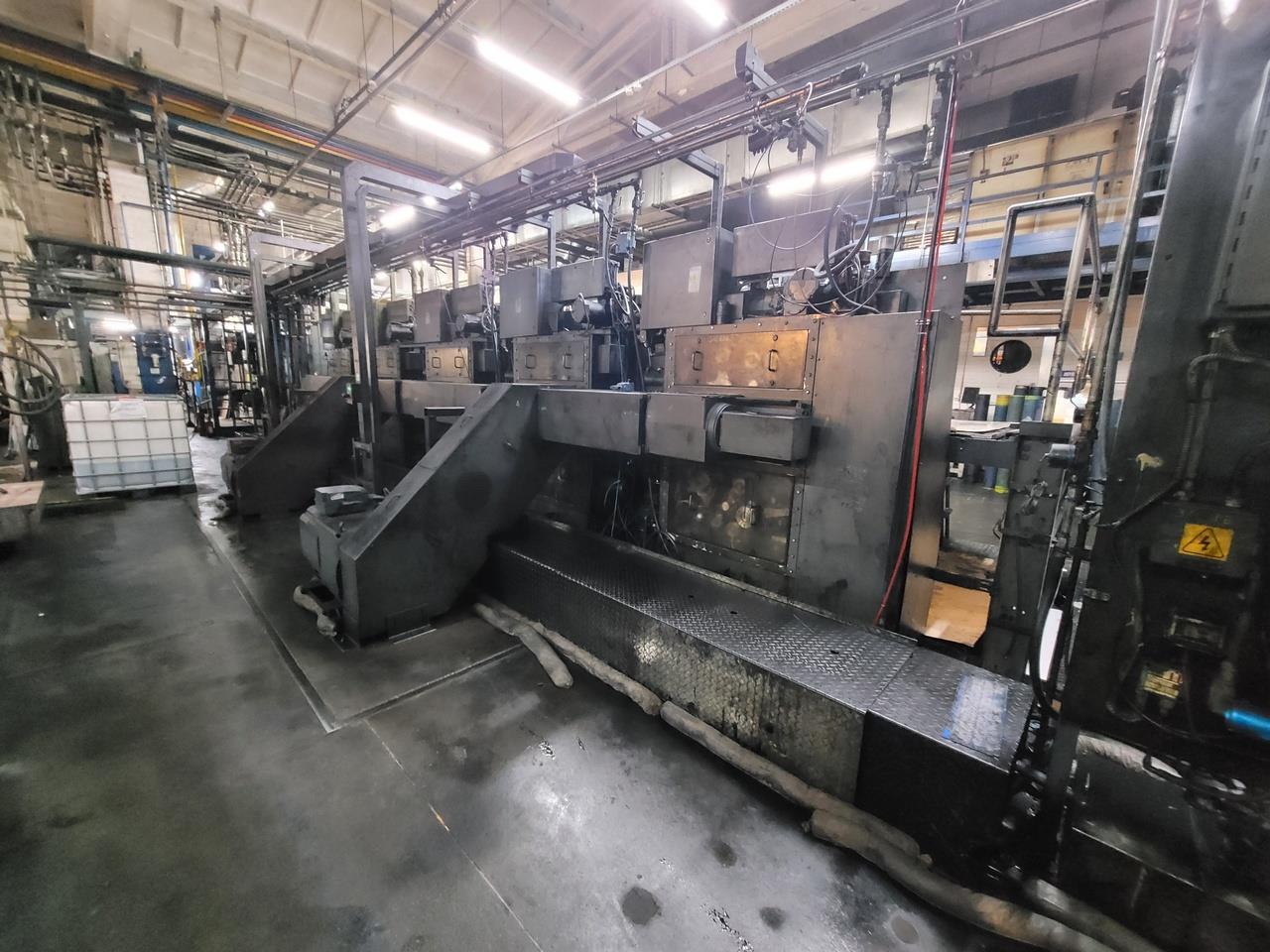

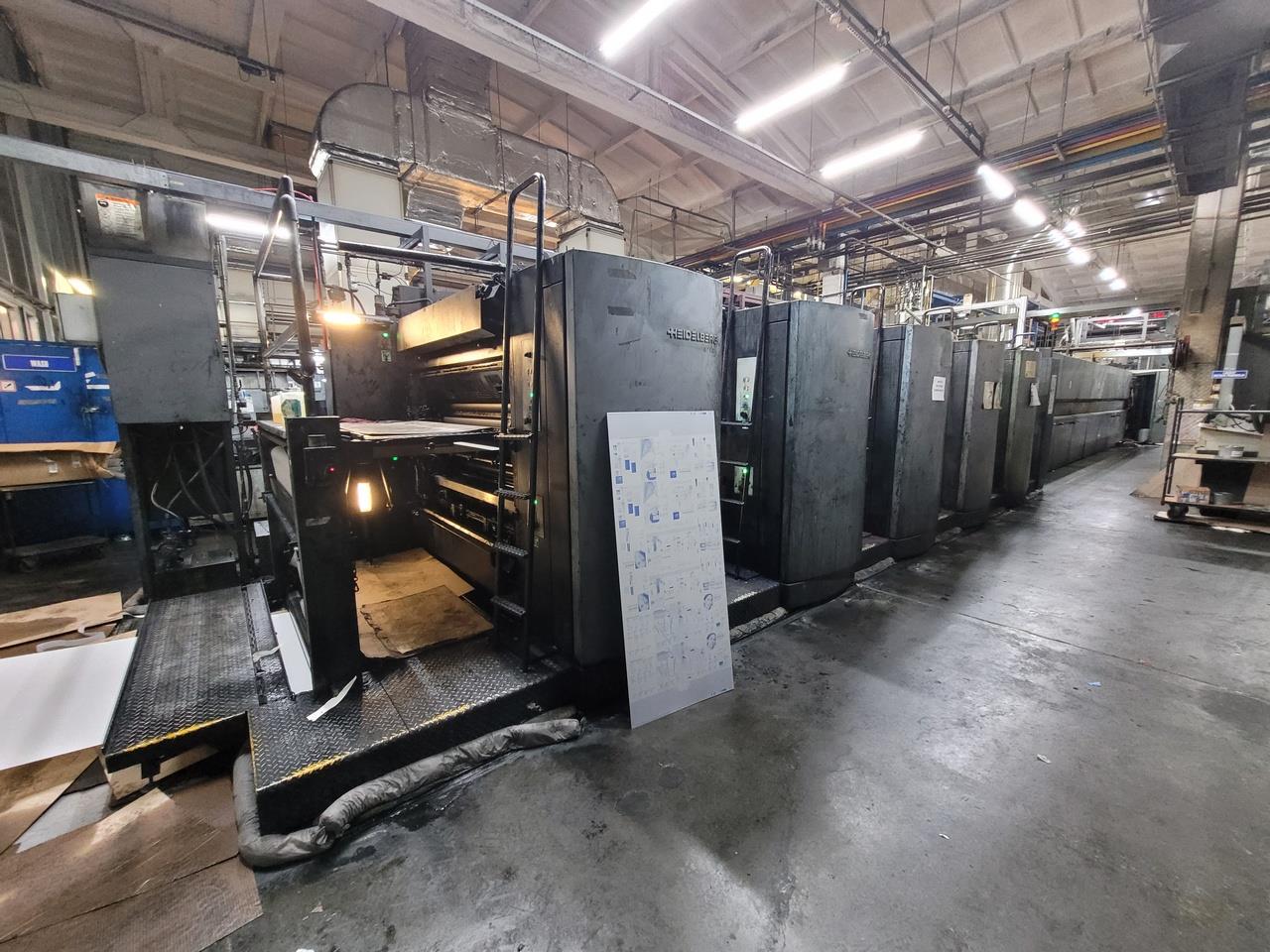

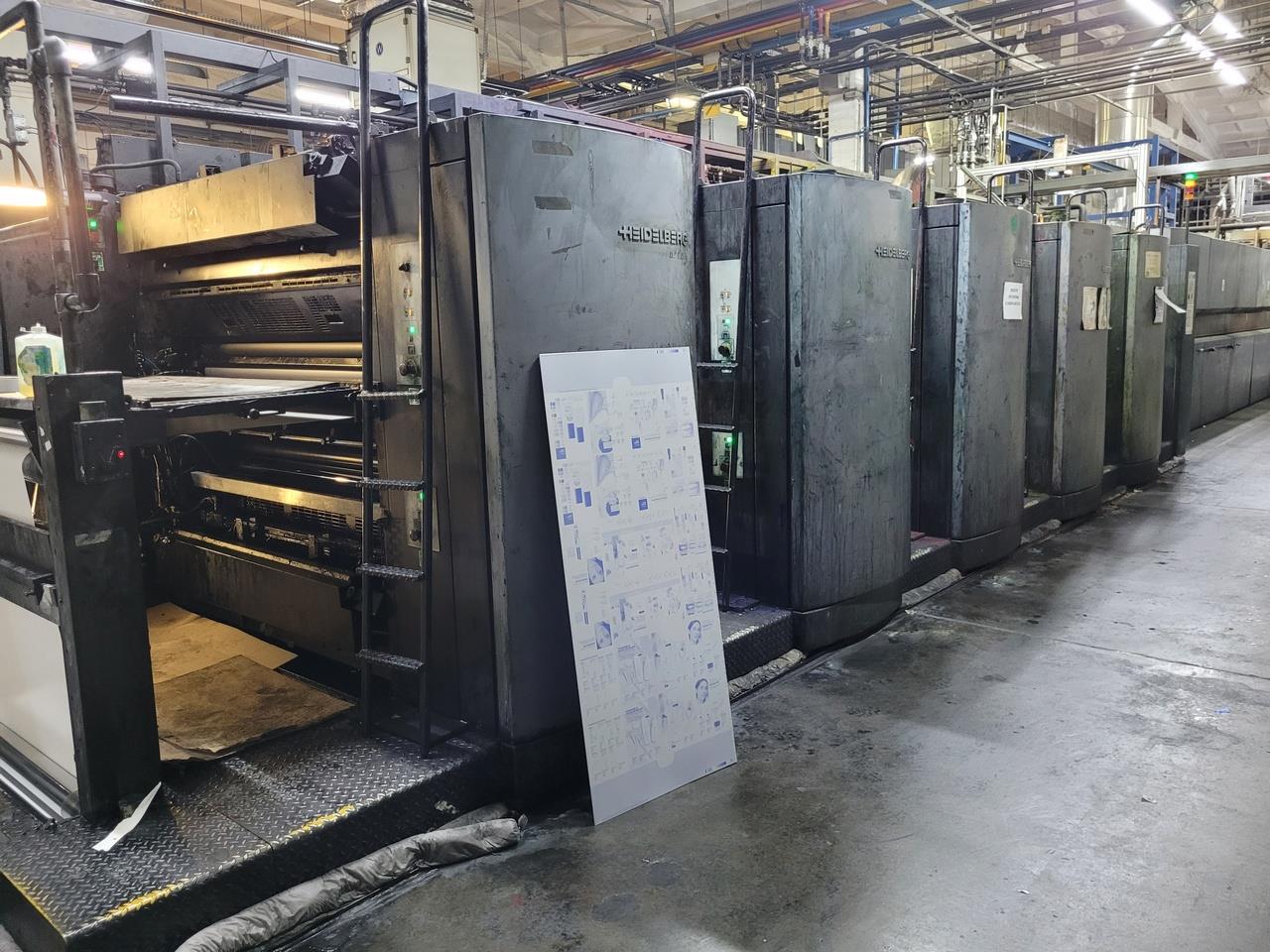

Heat-set Web Offset Printing Machine


Special Offer Video
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: Heidelberg Druckmaschinen A.G., Germany
  • Production Year: 2004
  • Number of Colours: 5
  • Web-width: 1440 mm
  • Cut-off: 620 mm
  • Number of Pages: 24
  • Max. Speed: 55000 imp./hour

More Details

  • 24 pages A4 web offset machine

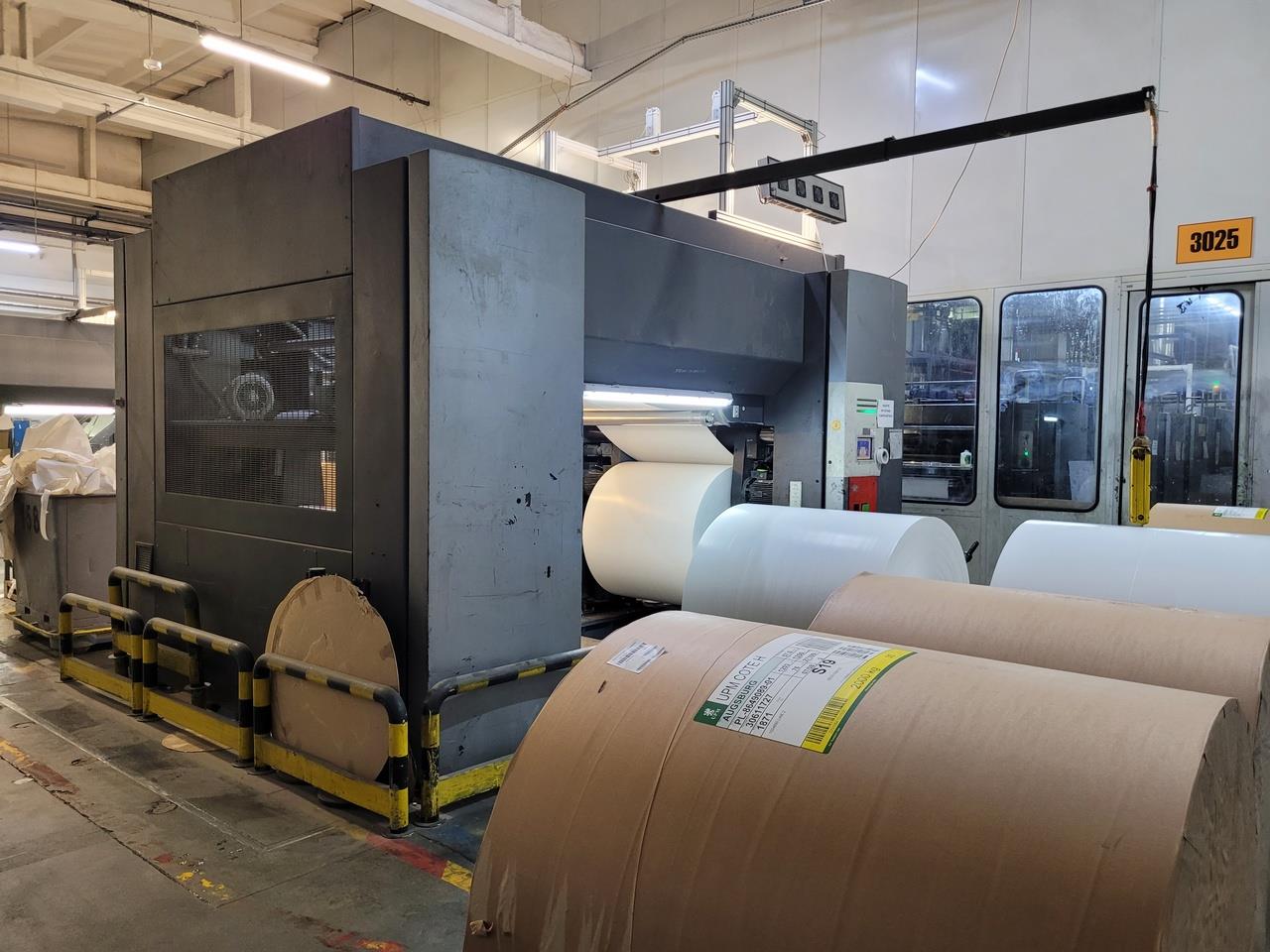

  • Contiweb unwinder - model CS10-146R
  • 5 printing units (5 colors), 5th unit with separate water system for printing, e.g. with scented inks
  • Technotrans alpha.d
  • cylinder brush washing system
  • main drive units with two Siemens motors

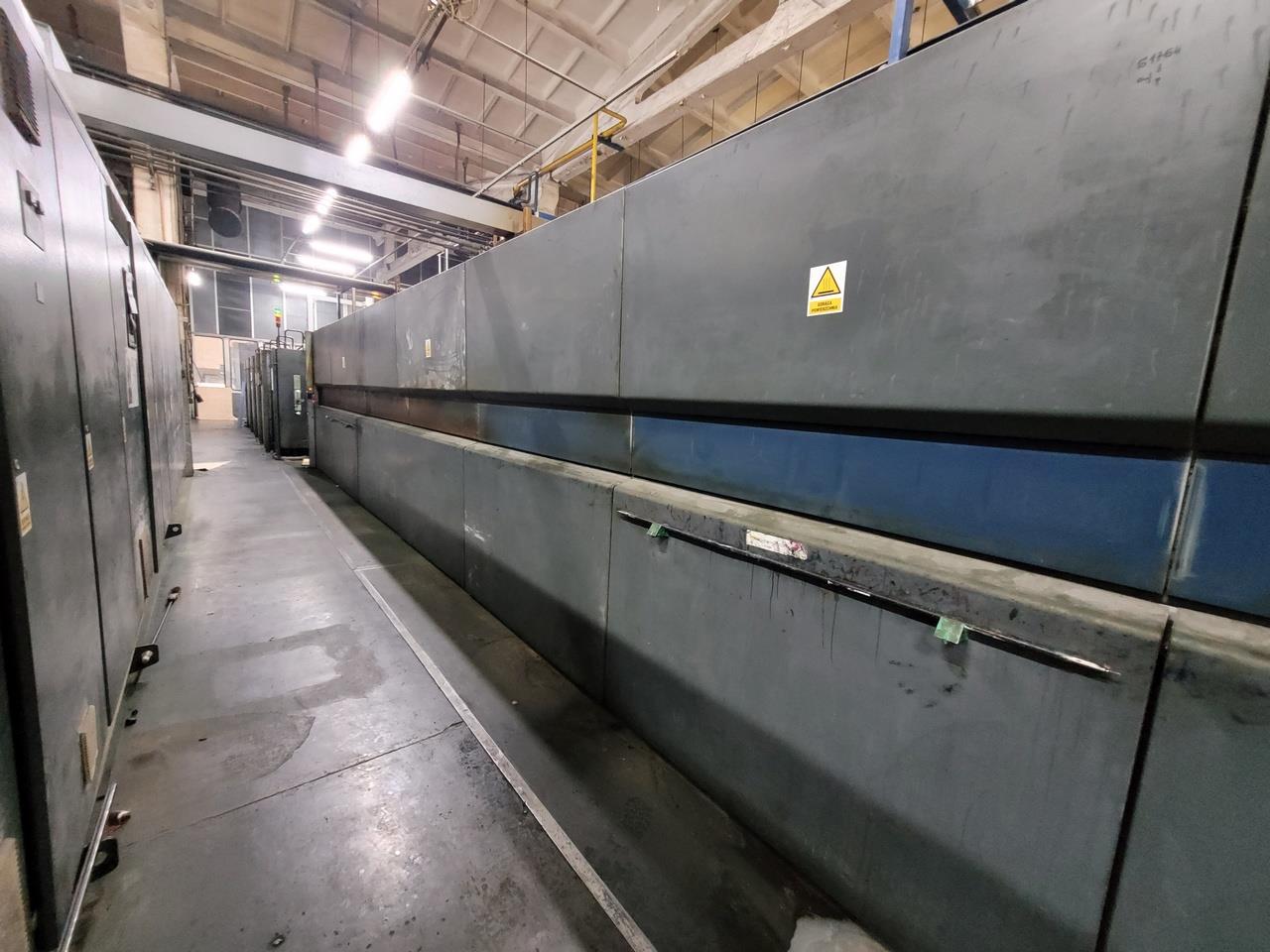

  • Ecocool Contiweb EOT1211- 46R-NG drying tunnel with integrated additional flue gas combustion and Ecocool cooling section
  • Heidelberg/Goss folder and attachment model PCF 1.1 (folds A3, A4, A5, cross, newspaper, double parallel, delta, oblong, slimjim)
  • Omnicon Control System
  • ST3200 model with strapping machine and PL86 palletizer
  • the machine is sold as a whole including transporters and stacker
  • an offset plate bender is available with the machine
  • GMI closed loop color settings
  • web control system QI Press Controls mRC-3D register and cut-off control

Condition of the Machine

  • Very good condition, well maintained, worn out according to its age.
  • Can be seen running.
  • Availability: immediately
  • Sale Reason: production reduction
  • Refurbishments: modernization of drives carried out two years ago (new Siemens Sinamics rectifier)
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
