HEIDELBERG CD 102 - 5 + L X3 HYBRID
Sheet-fed Offset Printing Machine
#25019
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Manufacturer: Heidelberg Druckmaschinen A.G., Germany
- Production Year: 2012
- Number of Colours: 5 + Coating - UV (dispersive and also UV chamber blade)
- Max. Size: 720x1020 mm (28.3"x40.2") approx. B1
- Max. Speed: 15000 imp./hour
- Counter: 141 mil. imps.
More Details
- Alco Smart alcohol dampening
- CombiStar refrigeration device
- no perfecting
- high pile extended delivery

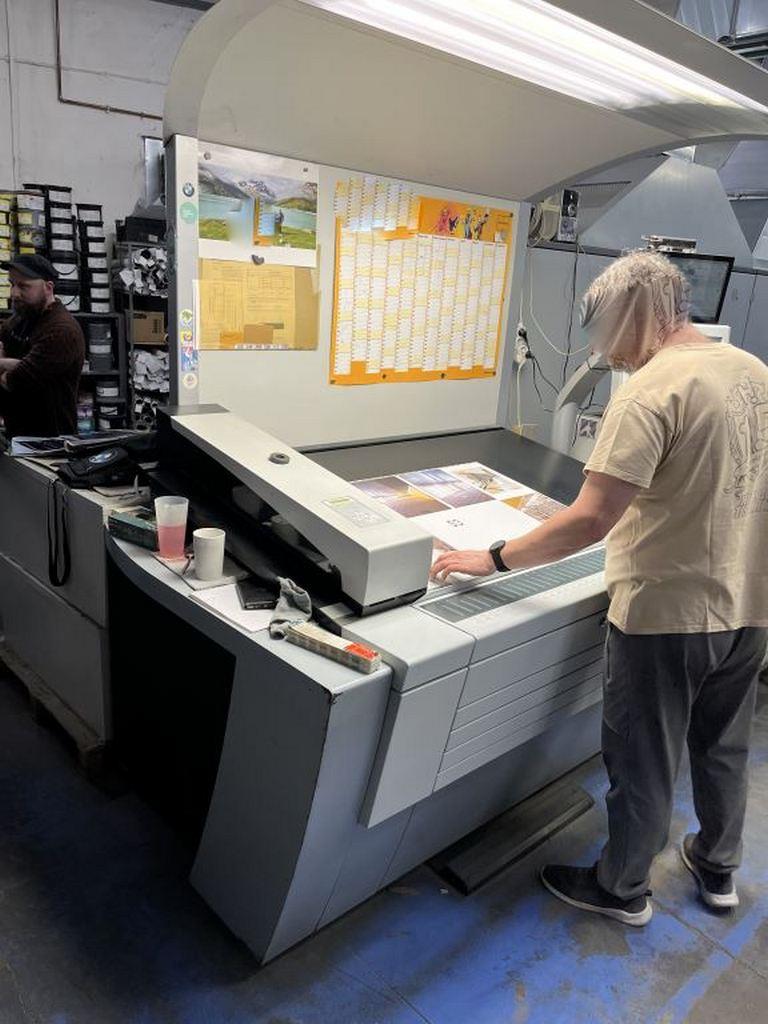

- Press Center CPC with Axis Control ink and register remote control
- AutoPlate fully automatic plate loading
- ink rollers, impression cylinders, blanket cylinders, offset cylinders automatic wash up device
- DryStar combination IR dryer
- Weko AP 262 powder sprayer
- chambered blade varnish metering for dispersive or UV coating (both options possible)
- PPF – Preset Plus feeder
- Preset delivery
- CombiStar cooling for the dampening solution, air-cooled
- Press Center CPC remote control system with Axis Control color
- measuring devices with diagonal register
- 2x UV IDD (ZDT preparation for UV printing behind each of 5 printing units)
- Interdeck drying with ZDT
- normal/UV inking rollers
- Ionization powder bar
- CleanStar Preset
- Compact antistatic device in feeder and delivery
- Program controlled complete wash-up device
- ICWD version, UV basic equipment, UV package in delivery
- Pull lay control, Double sheet detector, Ultrasonic double sheet
- Multiple-sheet detector, extended delivery, dampening form rollers for nor
- crowned water pan roller, IPA version, Premium IPA mesauring
- Westland dampening form roller, Exhaust hood
- complete preparation for temperature control device
- AirStar Pro
Condition of the Machine
- Very good condition, well-maintained.
- Still in production.
- Availability: 31/01/2026
- Sale Reason: purchase of a new machine
- Found Damages: Scrollstar not working
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
