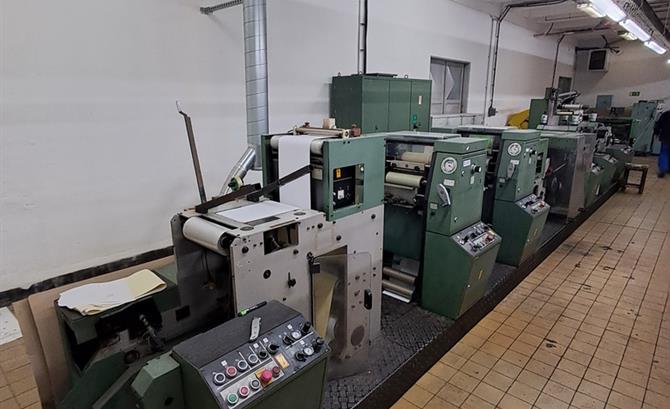

GALLUS R 250 F
Flexographic Printing Machine
#26012
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 1989
- Number of Colours: 4
More Details
- belt speed:
- speed during setting: 5 m/min
- maximum speed belt: 150 m/min
- reduction of the maximum speed belt when integrating the following units:
- rotary letterpress unit: max. 100 m/min
- flat die-cutting unit:
- at die-cutting length 315 mm: 104 m/min
- at die-cutting length 157 mm: 52 m/min
- rotary dry printing unit: 45 m/min
- rotary screen printing unit: 35 m/min
- material thickness: 0.05 – 0.33 mm
- flat weight: 80 – 300 g/m²
- unwinding:
- belt width: max. 280 mm / min. 130 mm
- roll diameter: max. 1000 mm
- winding:
- roll diameter
- winding unit max. 700 mm
- automatic winding 3 spindles max. 380 mm
- grid exhaust unit max. 800 mm
- stacking:
- belt width max. 280 mm
- format length
- stacking unit max. 460 mm
- Schuppen - delivery max. 305 mm
- printing:
- printing width max. 260 mm
- printing length max. 609.6 mm / min. 304.8 mm
- setting step 3.175 mm
- flat die-cutting:
- die-cutting width max. 270 mm
- die-cutting length max. 314.325 mm / min. 157.163 mm
- setting step 1.59 mm
- rotary cutting:
- cutting width max. 270 mm
- cutting length max. 609.6 mm / min. 304.8 mm
- setting step 3.175 mm
- rotary punching:
- cutting width max. 260 mm
- cutting length max. 609.6 mm / min. 508 mm
- setting step 3.175 mm
Condition of the Machine
- Functional, condition and wear and tear according to its age, well maintained.
- Not in daily production but can be seen running at your request.
- Availability: immediately
- Sale Reason: production reduction
- Work Experiences: self-adhesive materials, paper, cardboard
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
