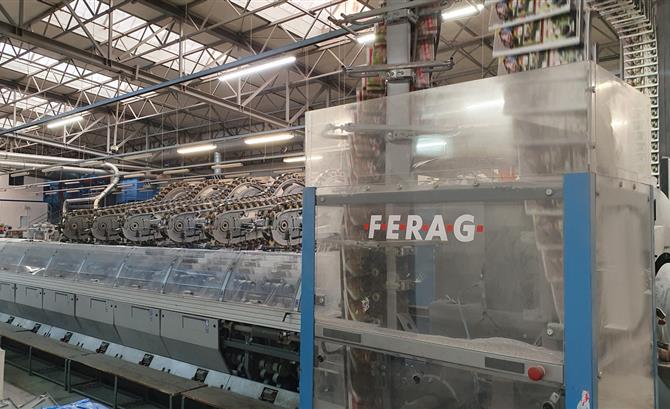

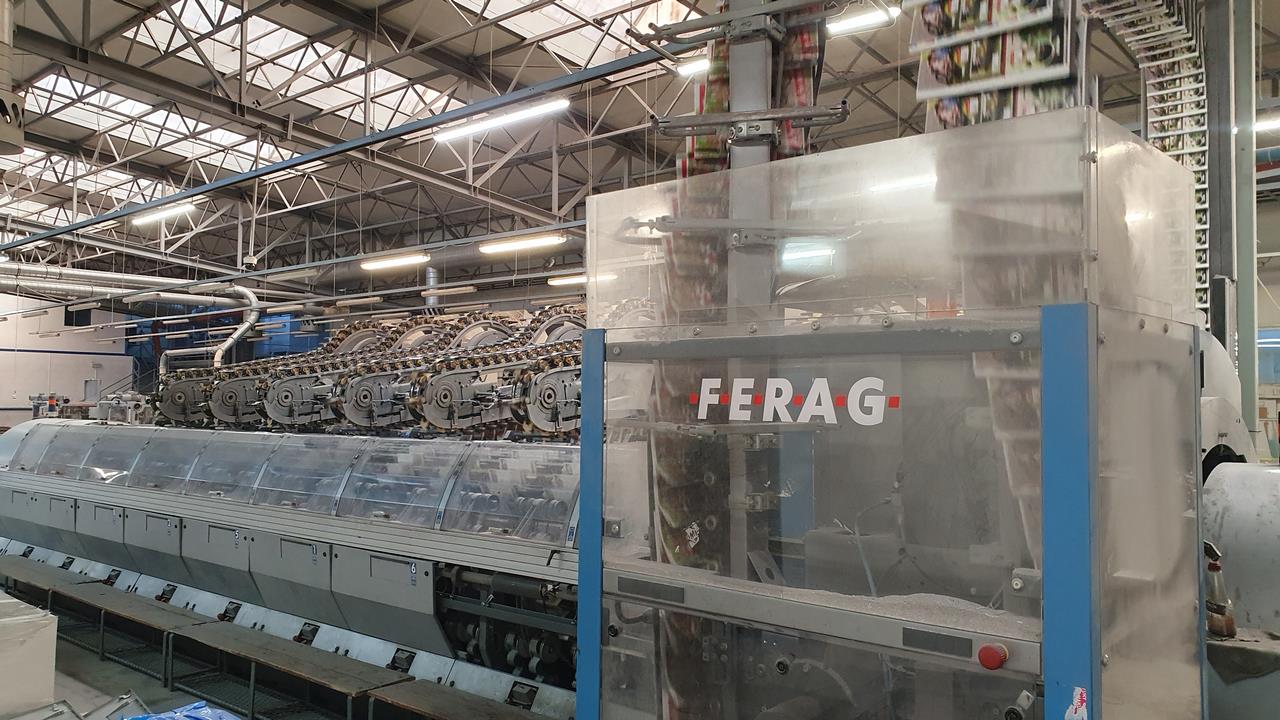

FERAG 41.85.16
Collating and Stitching Line
#26543
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Manufacturer: Ferag AG, Zürich, Switzerland
- Production Year: 2007
More Details
- Gross format (W × H): min. 152 × 217 mm, max. 315 × 340 mm
- Final format (W × H): min. 148 × 210 mm, max. 300 × 332 mm
- Saddle feeder: 110 × 95 to 315 × 340 mm
- Gluing of single sheets only – no blocks:
- 55 × 85 to 280 × 200 mm and 85 × 55 mm
- A credit-card-sized card can be glued either lengthwise or crosswise
- Number of gatherer stations: 8
- Number of glued-sheet feeders: 1
- Maximum book thickness: 5 mm
- Signature lap: 8–12 mm – rear lap only
- Signatures without a lap are possible, but not across the full format range
- In-line trimming is not possible
- Head and foot trim: 3.5–50 mm
- Side trim: 3.5–50 mm
- Landscape products cannot be trimmed on the three-knife trimmer
- Stitches:
- 2 or 3 wire stitches
- Stitch size: 15 mm
- Maximum distance between outer stitches: 160 mm
- Distance from outer stitch to center stitch: 80 mm
- The stitch heads are fixed. Individual stitch heads can be disabled, while the product position can be adjusted relative to the stitches
- With two stitches:
- A4: upper and lower stitches are used, center stitch disabled
- A5: upper and center stitches are used, lower stitch disabled
- Hanger loops: not available
- Cover:
- The cover must be folded before feeding
- It is fed from the signature feeder (or by using Unicover)
- Paper weight (A4)
- 80–300 g/m² for uncoated papers and coated boards
- max. 255 g/m² for folding boxboard
- Minimum cover weight: 10 g
- Covers with the flap facing outward cannot be processed. They can only be processed with the flap inward and then manually turned over
- Half cover
- Fed from the signature feeder and must be pre-folded
- Paper weight: 130–200 g/m²
- Minimum width for A4: 110 mm
- Signatures
- Signature weight: 10 g

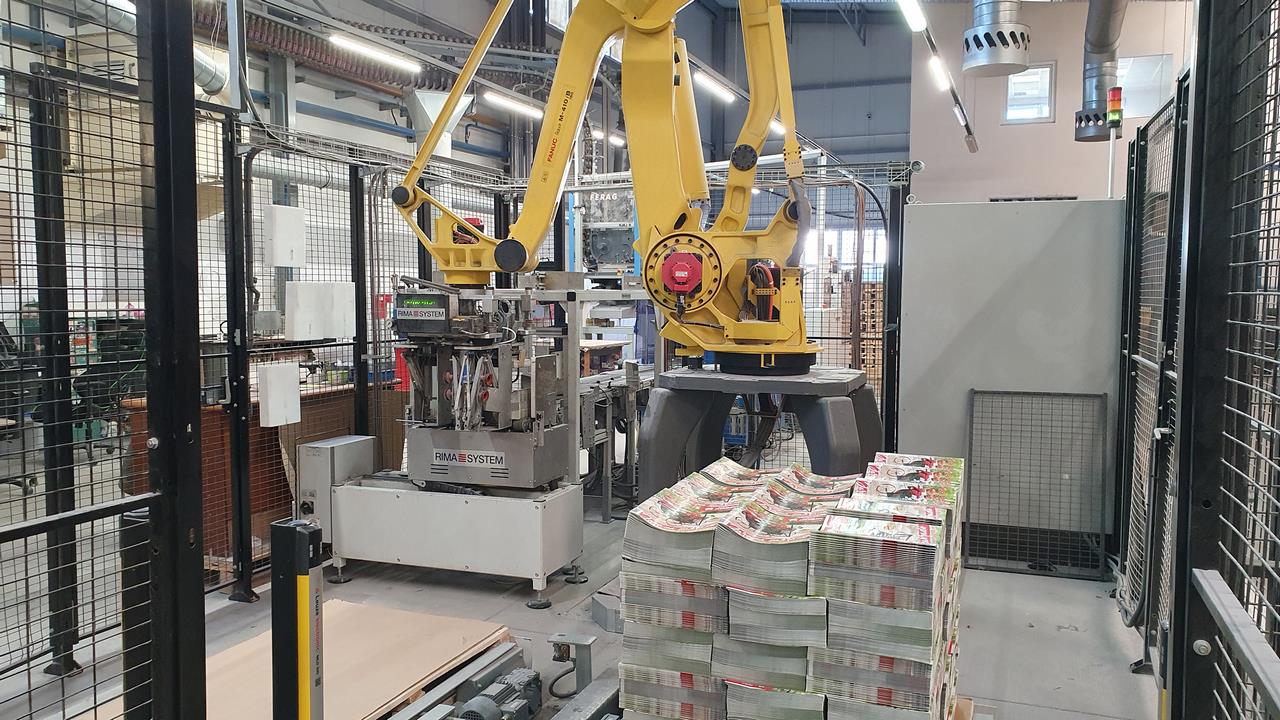

- RIMA system:
- RIMA machine for transporting of stacks of booklets into stackers
Condition of the Machine
- Functional, condition and wear and tear according to its age, well maintained.
- Not in production but still plugged in.
- Availability: immediately
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
