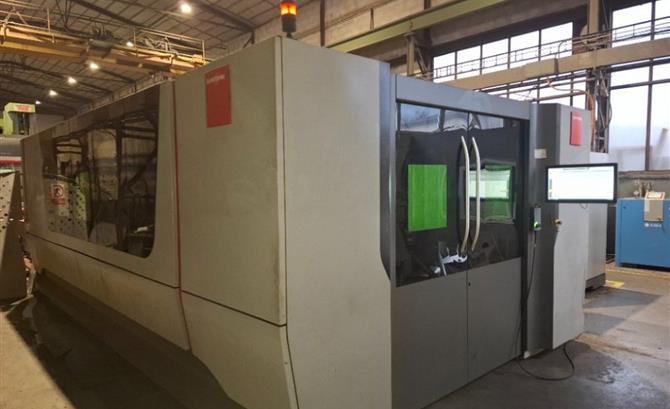

CNC LASER BYSMART FIBER 4020 , FIBER 6000
CNC LASER
#26523
Machine CV Download the offer as PDF
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information

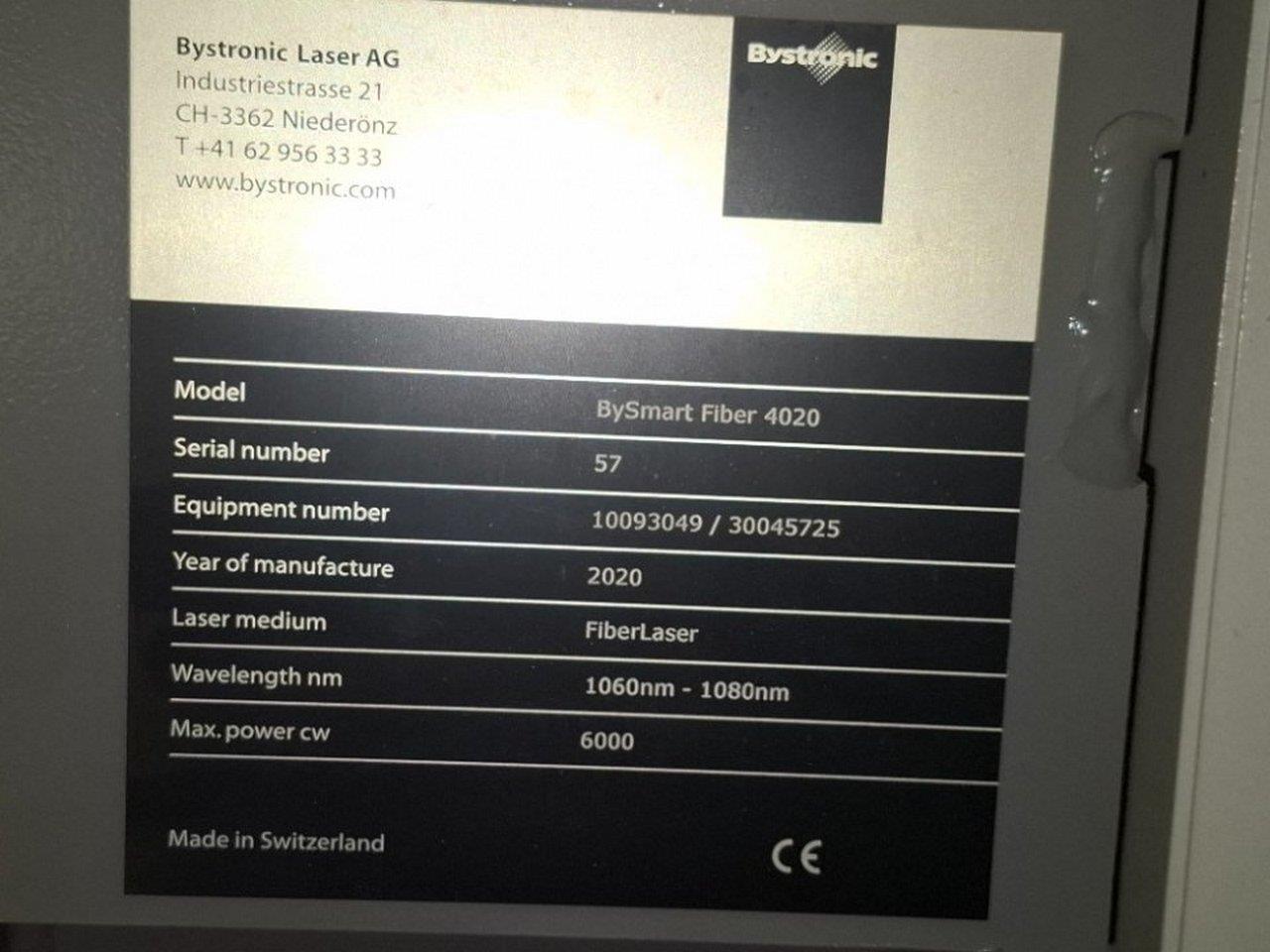

- Production Year: 2020

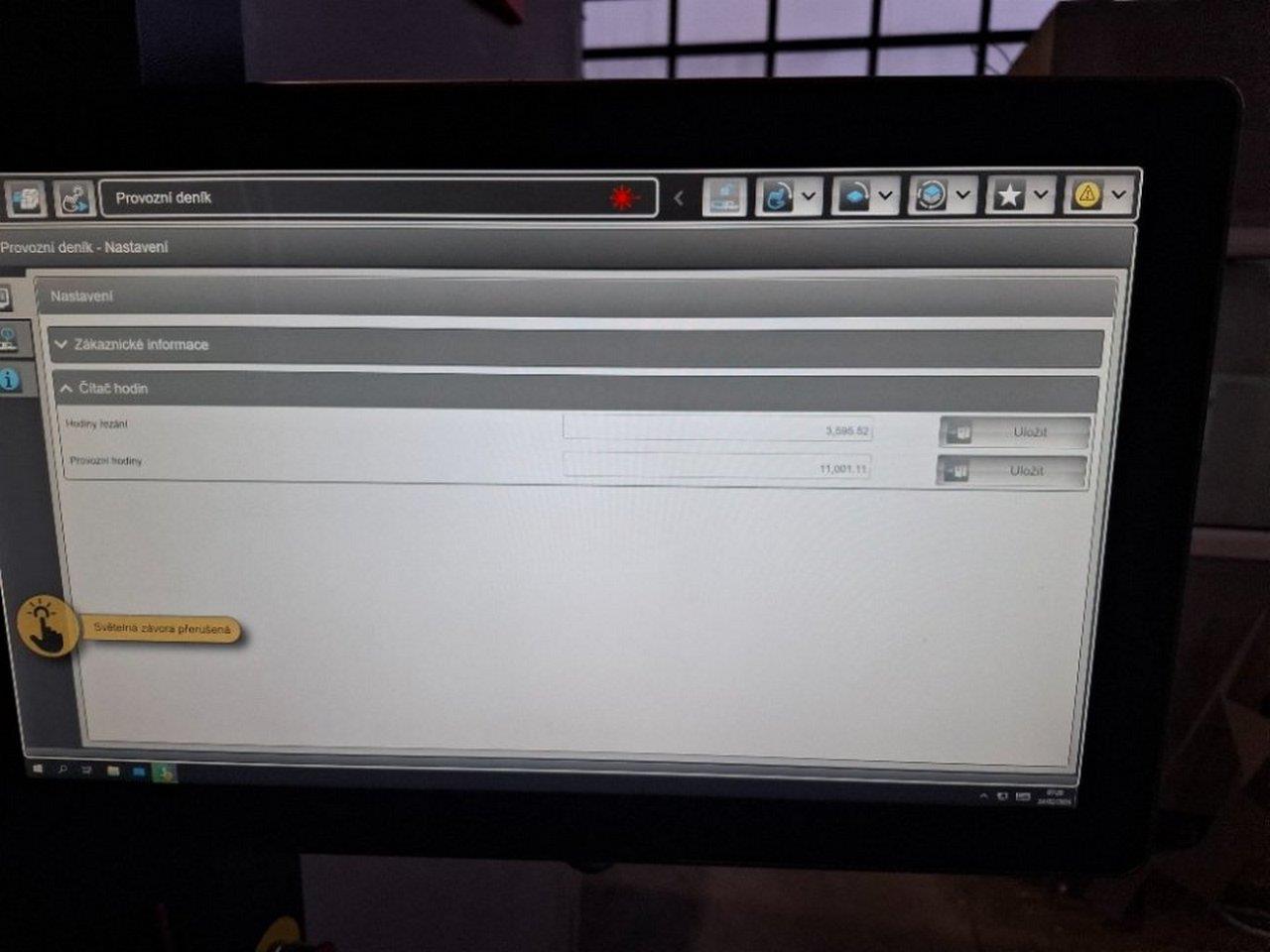

- Counter: 3600 hours
More Details
- smart access to fiber laser technology
- excellent cutting performance and high-quality cutting of thin to medium-thickness sheet metal.
- a wide range of applications. In addition to steel, stainless steel, and aluminum, non-ferrous metals can also be processed with excellent quality.
- easy operation and intuitive process control enable quick adoption of fiber laser technology.
- higher profit per part. Fast cutting processes combined with relatively low operating costs and minimal maintenance requirements.
- flexible process solutions. Bystronic’s software and automation solutions optimally integrate the BySmart Fiber into sheet metal processing environments.
- machine length (L): 12,765 mm
- machine width (W): 7,535 mm
- machine height (H): 2,880 mm
- nominal sheet size (X): 4,000 mm
- nominal sheet size (Y): 2,000 mm

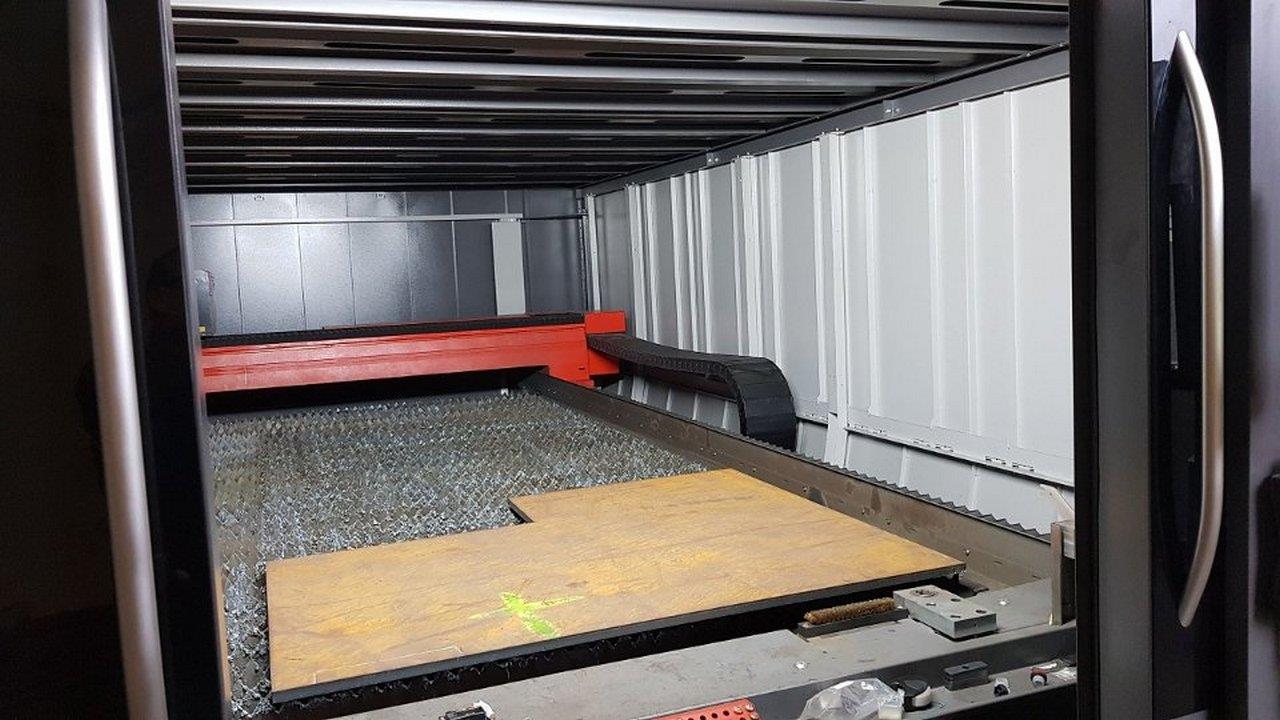

- cutting area (X): 4,120 mm
- cutting area (Y): 2,110 mm
- cutting area (Z): 100 mm
- maximum positioning speed of parallel X/Y axes: 100 m/min
- maximum simultaneous positioning speed: 140 m/min
- bidirectional positioning repeatability of one axis R (according to ISO 230-2:2014): 0.05 mm
- mean bidirectional positioning deviation of one axis M (according to ISO 230-2:2014): 0.1 mm
- edge detection accuracy: ± 0.5 mm
- maximum workpiece weight: 1,900 kg
- laser source: Fiber 6000
- power: 6,000 W
- power range: 600–6,000 W
- wavelength: Fiber
- table change time: 36 s
- maximum material thicknesses:
- steel*: 25 mm
- stainless steel: 30 mm
- aluminum: 30 mm
- copper: 12 mm
- brass: 15 mm
- with optional BeamShaper function
- chiller: Yes
- dust extractor: Yes
- automatic plate loading: No
- total system power consumption (including extraction and chiller): * 21 kW
- * power consumption data represents an average based on 4 reference cutting plans for structural steel with thicknesses from 1–10 mm.
- the machine has been regularly serviced.
- no components have been replaced.
Condition of the Machine
- Very good condition, well maintained, worn out according to its age.
- Not in production but still plugged in.
- Availability: immediately
- Sale Reason: closing company
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
