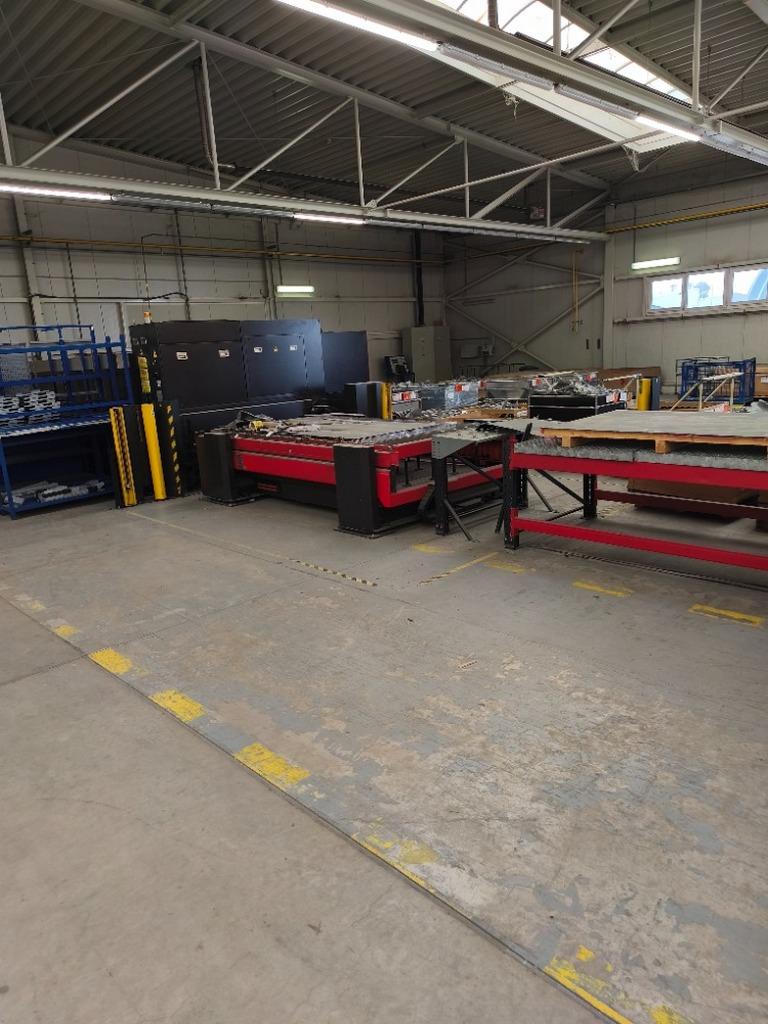

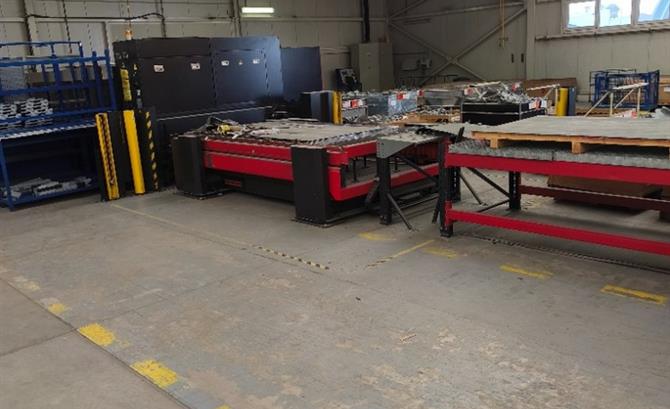

AMADA LCG 3015 AJ
#26552
Special Offer
Machine CV Download the offer as PDF
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 2016
More Details
- Maximum continuous laser power 2,000 W
- X-axis travel 3,070 mm
- Y-axis travel 1,500 mm
- Z-axis travel 100 mm

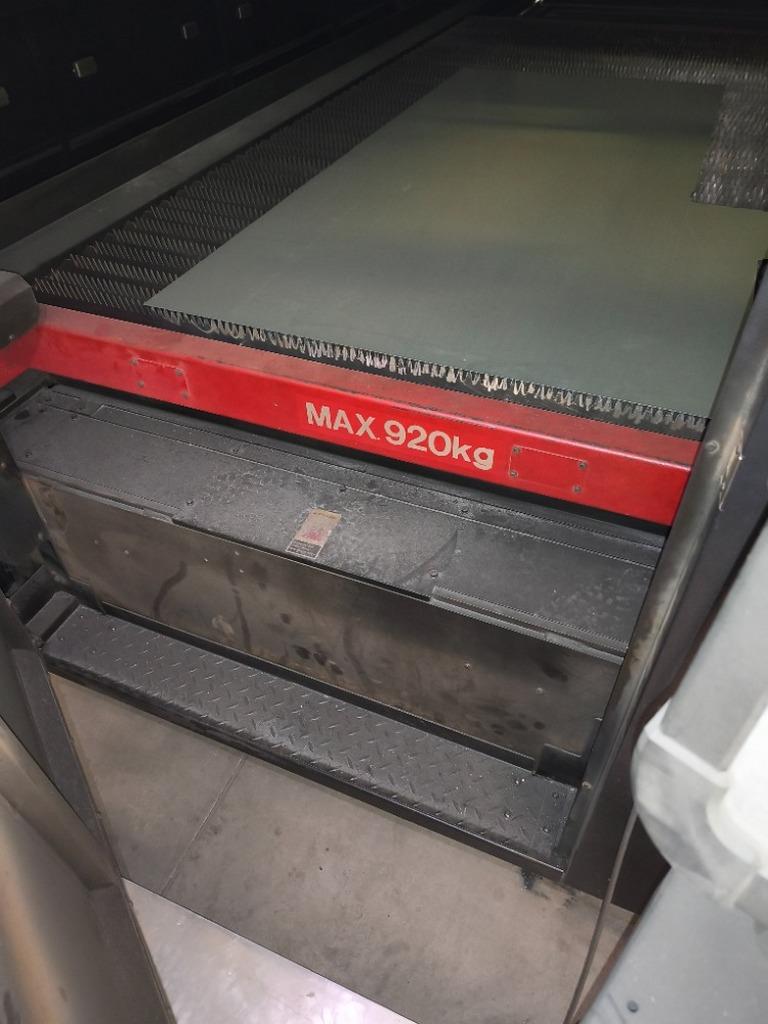

- Maximum table load 920 kg
- Max. thickness – mild steel ST 1203 16 mm
- Max. thickness – stainless steel 10 mm
- Max. thickness – aluminum AlMg3 8 mm
- Max. thickness – copper 4 mm
- Max. thickness – brass 5 mm
- Cutting speed 0–120 m/min
- X-axis traverse speed 120 m/min
- Y-axis traverse speed 120 m/min
- Combined X/Y traverse speed 170 m/min
- Z-axis traverse speed 80 m/min
- Positioning accuracy ±0.01 mm / 500 mm
- Repeat positioning accuracy ±0.005 mm
- AMNC-F CNC control
- CNC system featuring a cutting parameter library, automatic diagnostics, closed-loop laser power control, USB and Ethernet/LAN interfaces, program search, production time measurement and single-/multiple-part production modes. Programs can be edited at the machine; external programming of complex parts requires optional software.
- Type AMADA AMNC-F
- Display 15″ touchscreen
- Simultaneously controlled axes 3 (X/Y/Z)
- Program format ISO/EIA
- Input resolution 0.001 mm
- Memory capacity 1 MB

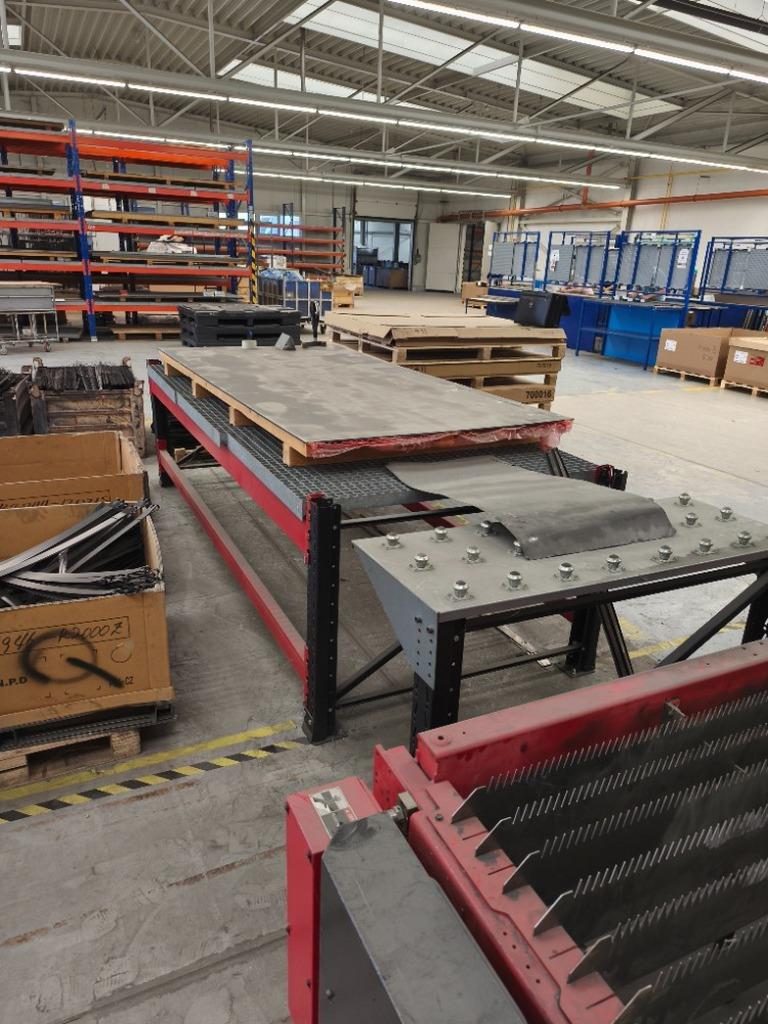

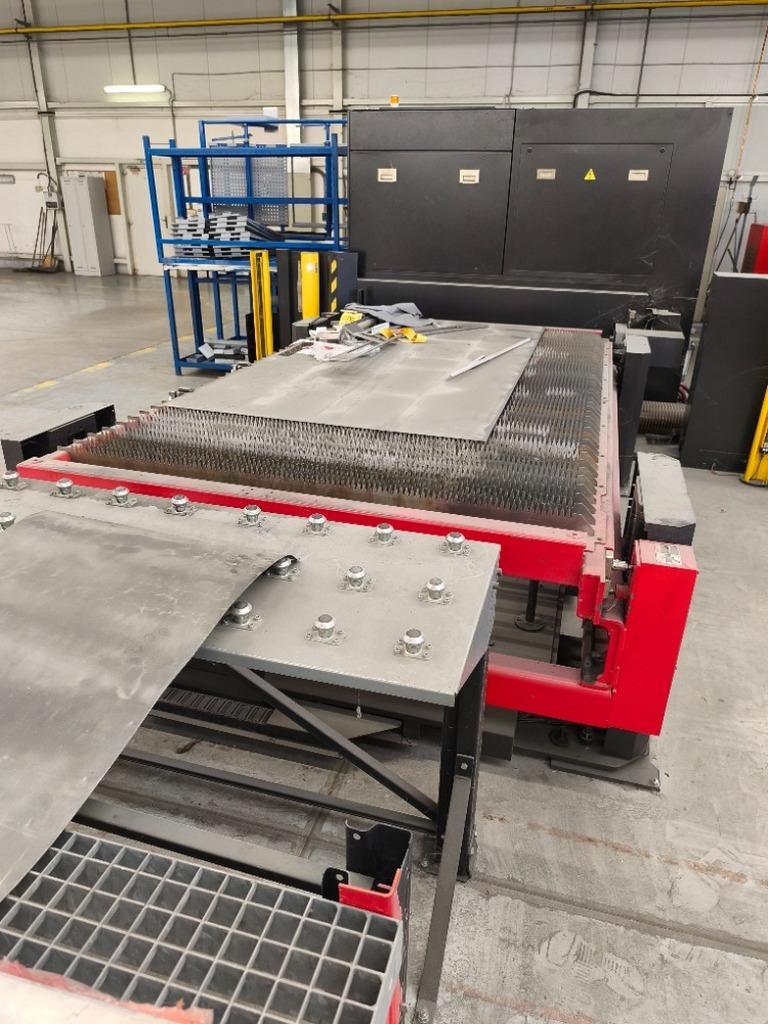

- Automatic pallet changer — Standard pallet system allows the next sheet to be prepared while cutting, reducing downtime. The supplied configuration includes pneumatic clamping for thin sheets and a roller support for positioning.
- HS cutting head — Lightweight cutting head with capacitive height sensing to maintain a constant stand-off distance; quick nozzle and lens replacement.
- Programmable Z axis — 100 mm travel, allowing limited processing of formed parts and profiles.
- Positioning diode laser — Helps position the cutting head and process raised sheets or offcuts.
- NC automatic focusing — Motor-driven focus adjustment for different materials and thicknesses.
- OVS4 / OPCIA optical measurement system — Camera-based sheet position detection, cutout recognition and accurate edge-based position measurement (stated accuracy ±0.05 mm).
- High-pressure cutting — CLEAN CUT technology for clean, oxide-free edges and ALU CAT for aluminum cutting.
- OilShot — Program-controlled application of liquid to the sheet surface to reduce adhesion of contamination.
- POWER PIERCING — Reduces piercing time and improves operating efficiency.
- Fine Edge power control — Adapts laser power to feed rate and part geometry, particularly at edges and corners.
- Cutting lenses — Automatic lens monitoring; supplied set stated as three lenses with holders: 1 × 150 mm and 2 × 190 mm.

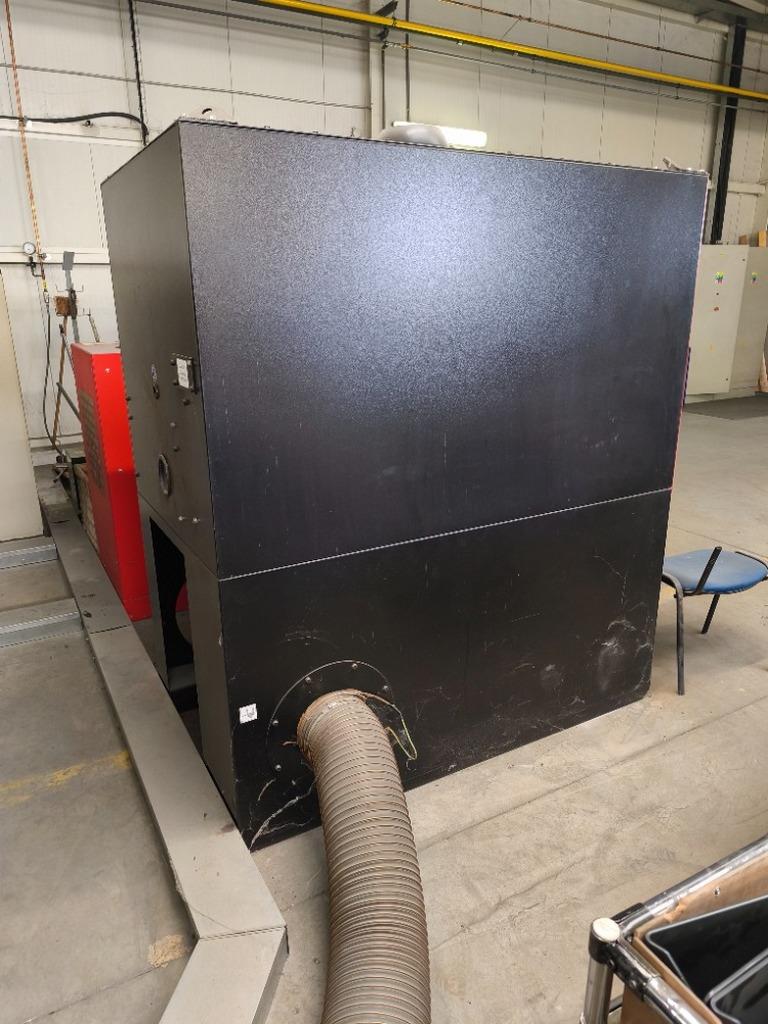

- Fume extraction — Vacuum extraction of cutting fumes and particles with self-cleaning filters.

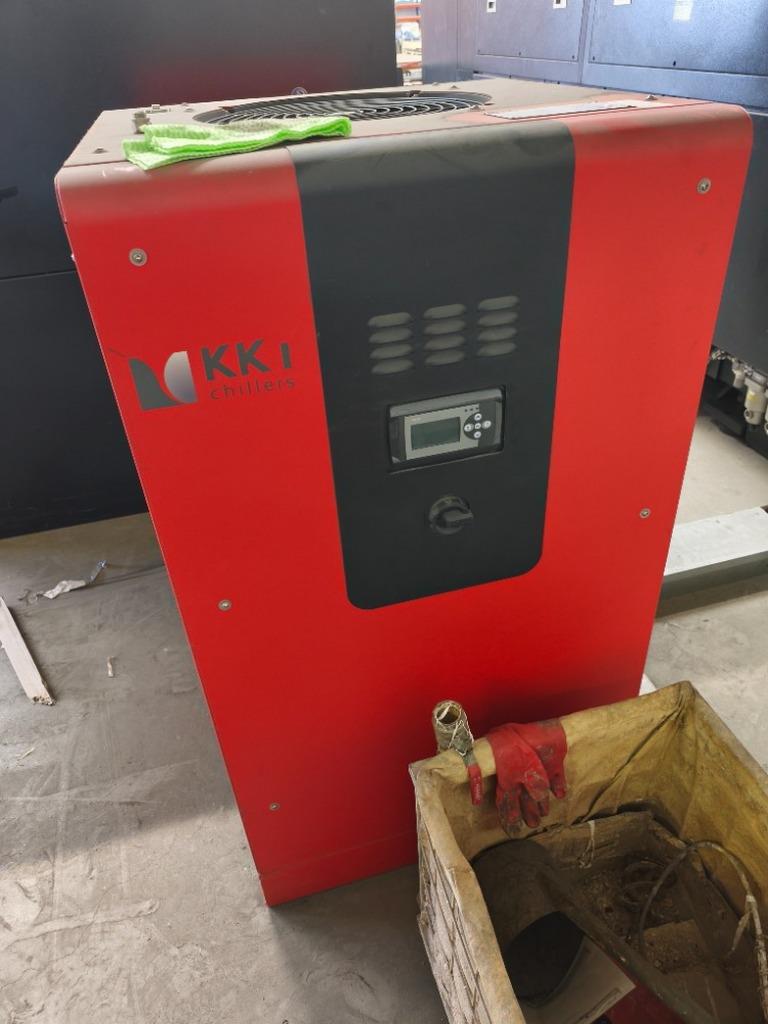

- Chiller — Closed-loop cooling of the laser, focusing mirror, lens and drives.
Condition of the Machine
- Functional, condition and wear and tear according to its age, well maintained.
- Can be seen running.
- Availability: immediately
-
Disclaimer:
The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
