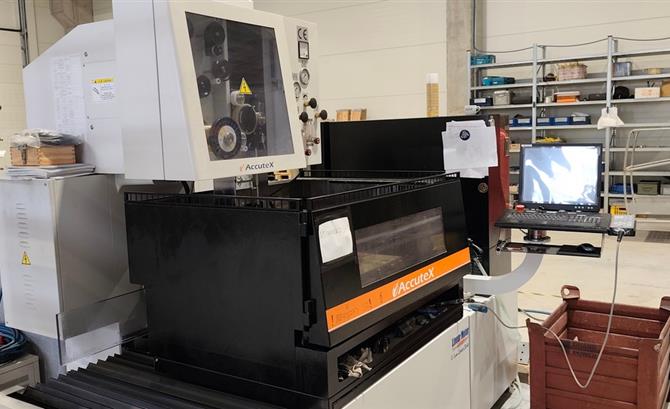

ACCUTEX AL - 500 SA
#26548
Special Offer
Machine CV Download the offer as PDF
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.
Basic information
- Production Year: 2025
More Details

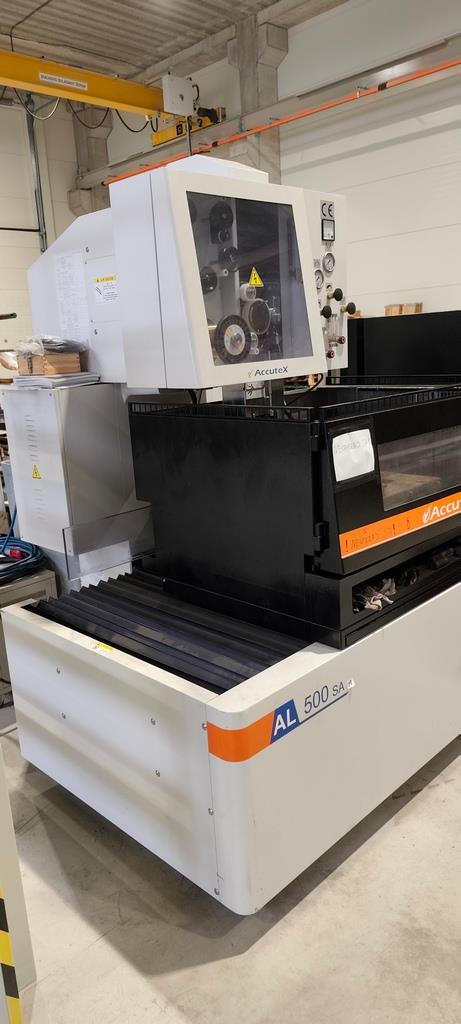

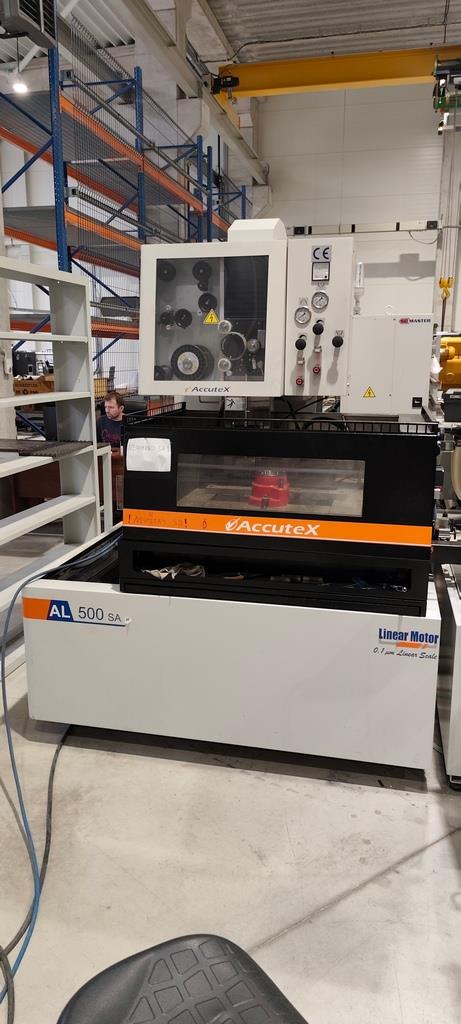

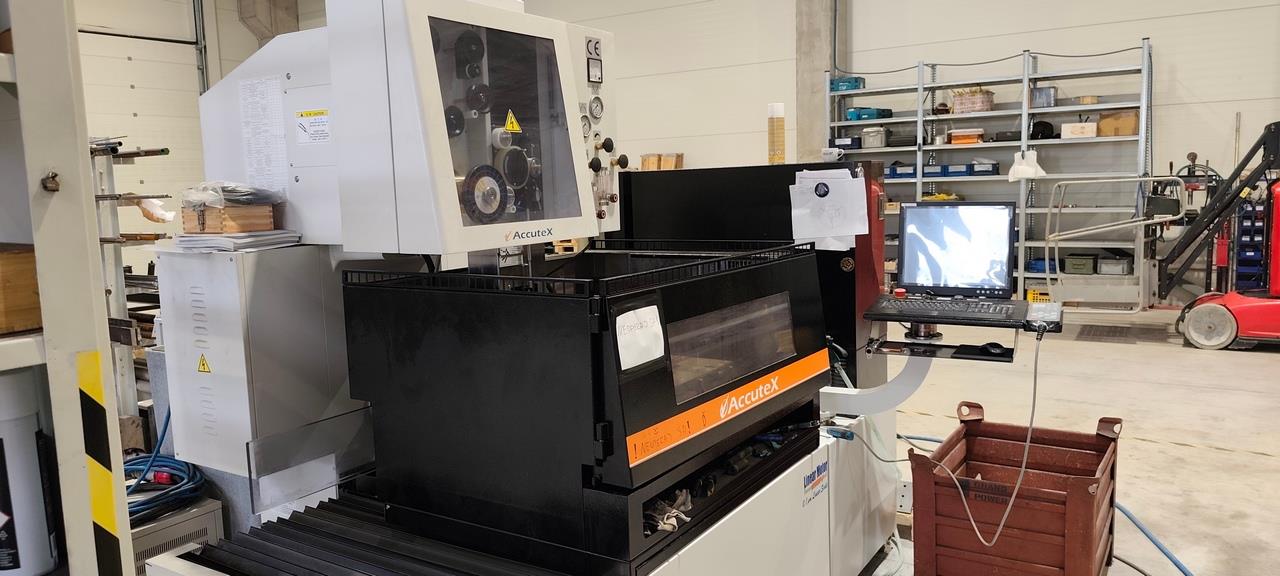

- The AccuteX AL-500SA is a CNC wire-cut electrical discharge machine (Wire Cut EDM) designed for precision machining of electrically conductive materials. The machine uses linear motors on the X and Y axes, a rigid T-type machine structure, and an AccuteX CNC control based on Windows CE. Its design focuses on accuracy, discharge stability, automatic wire threading and productive machining of small to medium-sized workpieces.
- Key features

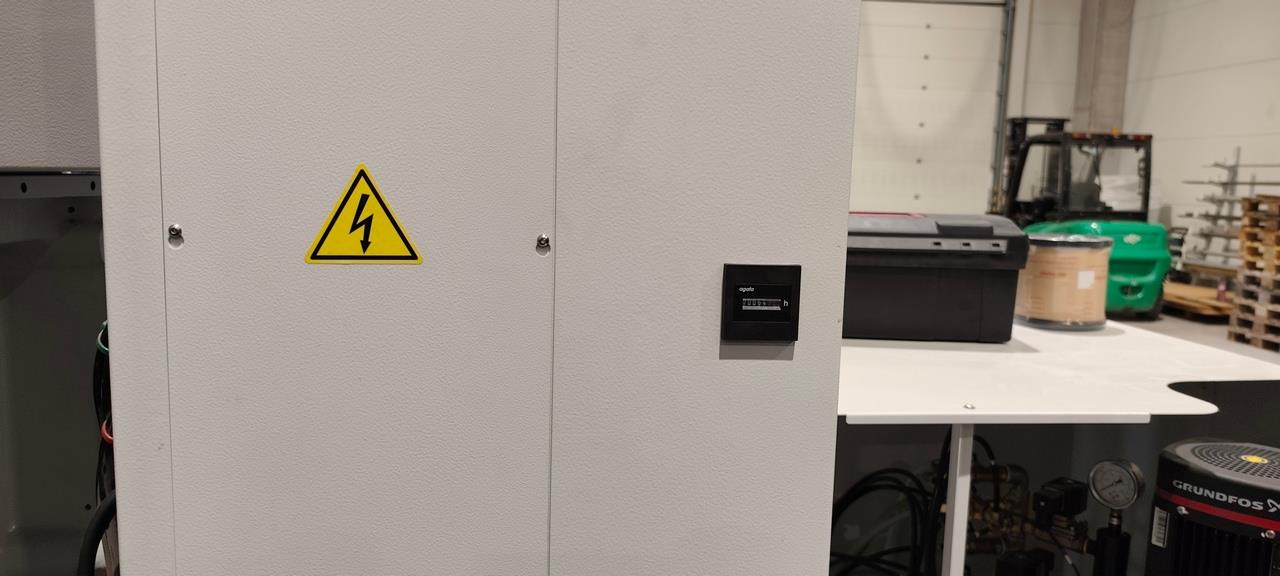

- 64 engine hours
- Linear motors on the X and Y axes, providing rapid response and eliminating conventional screw-drive backlash.
- Rigid T-design machine structure with a low center of gravity for machining stability.
- SD-Master stable discharge control for repeatability and stable cutting conditions.
- Corner Control / Corner Pro for automatic optimization of corners, arcs and lead-in/lead-out conditions.
- Automatic Wire Threading (AWT), including wire-end preparation and waste-wire removal.
- Workpiece thickness control and cutting-parameter optimization for varying thicknesses.
- Optional MST (Micro Sparking Technology) for very fine surface finish.
- Optional Remote Master for remote machine monitoring and optional 6th-axis rotary table.
- Optional preparation for PCD and graphite machining.
- Max. workpiece size 990 × 560 × 295 mm
- Max. workpiece weight 500 kg in quotation / 400 kg in manufacturer brochure
- X-axis travel 500 mm
- Y-axis travel 300 mm
- U/V-axis travel 100 × 100 mm
- Z-axis stroke 300 mm
- Max. taper angle ±21° / 100 mm
- Applicable wire diameter 0.15–0.33 mm (quotation)
- Max. wire spool weight 10 kg; 45 kg optional
- Linear scale resolution min. 0.001 mm (quotation)
- Machine footprint 2480 × 2980 mm
- Height / overall dimension 2210 mm in brochure; quotation states machine height 3600 mm and packing height 2210 mm
- Machine weight 3600 kg
- Total power input 30 kVA (quotation)

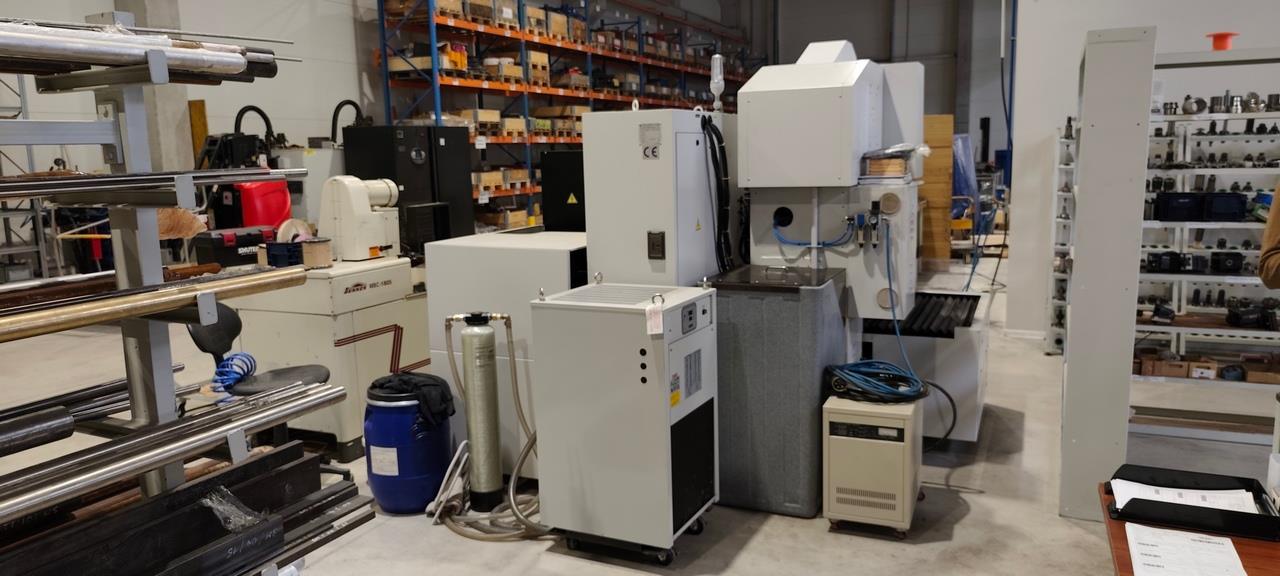

- Water system capacity 900 L
- Deionizer tank capacity 14.4 L (quotation)
- Water temperature control automatic
- X/Y lubrication automatic
- U/V/Z lubrication manual
- Control system AccuteX / Windows CE
- Processor 64-bit IPC / 64-bit Industrial PC
- Memory 1 GB CF Card
- Display 15″ TFT touch screen in quotation / 17″ TFT touch screen in manufacturer brochure
- Data interfaces keyboard, RS-232, USB, Ethernet; brochure also lists mouse pointer
- Minimum programming increment 0.0001 mm
- Maximum command range 9999.9999 mm
- Controlled axes quotation: 4 axes / 5 with optional W; brochure: 5 axes / 6 with optional W axis
- Simultaneous axes quotation: X, Y, U, V; up to 5 axes simultaneously with optional configuration
Condition of the Machine
- Excellent machine, condition similar to new machine.
- Not in production anymore.
- Availability: immediately
- Sale Reason: closing company
-
