MACHINERY EUROPE s.r.o., Hněvkovská 42, 148 00 Prague 4, Czech RepublicCurriculum Vitae of the machine Reference number: 15065
KDO C1

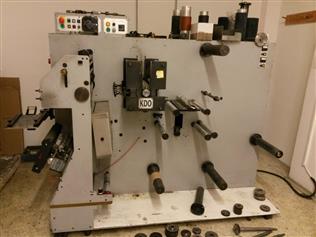

Flexographic Printing Machine
| Manufacturer: | KDO International West LTD, Worcester, WR6 6LR, England |
|---|---|
| Production Year: | 2004 |
| Number of Colours: | 1 |
| Web-width: | 250 mm |
| Availability: | immediately | ||
|---|---|---|---|
| Sale Reason: | surplus equipment sale | ||
|
|
Condition of the Machine: |
very good condition, well maintained, worn out according to its age
still in production |
|
| Disclaimer: | The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible. For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee. |
More Details:
the use of water-based and alcohol inks
rotary die-cutting unit
3 axes for rollers
winding and unwinding shafts
air shafts diameter of 70 mm and 76 mm
mechanical shafts 40 mm
print rollers 65, 71, 76, 78, 80, 82, 84, 85, 88, 89, 91, 94, 95, 96, 104, 105 teeth
2 pieces anilox rollers

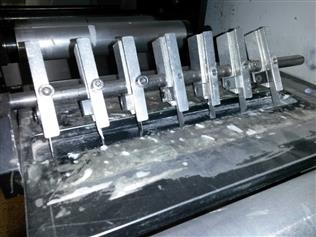

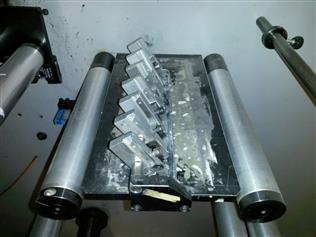

7 pieces cutting knives
protective covers
max. speed of 100 m / min.
the use of water-based and alcohol inks
rotary die-cutting unit
3 axes for rollers
winding and unwinding shafts
air shafts diameter of 70 mm and 76 mm
mechanical shafts 40 mm
print rollers 65, 71, 76, 78, 80, 82, 84, 85, 88, 89, 91, 94, 95, 96, 104, 105 teeth
2 pieces anilox rollers
7 pieces cutting knives
protective covers
max. speed of 100 m / min.
