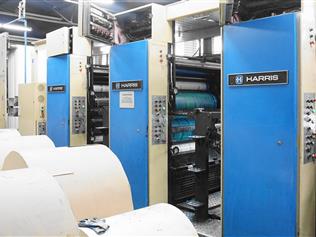

Curriculum Vitae of the machine Reference number: 17018
HARRIS M 1000 A
Heat-set Web Offset Printing Machine
Special Offer
Manufacturer: | Harris - Aurelia, USA |
---|---|
Production Year: | 1979 |
Number of Colours: | 4 |
Web-width: | 965 mm |
Cylinders Circumference: | 630 mm |
Cut-off: | 630 mm |
Number of Pages: | 16 |
Max. Speed: | 30000 imp./hour |
Availability: | immediately | ||
---|---|---|---|
Work Experiences: | folder - tabloid, delta, double parallel, magazine | ||
|
Condition of the Machine: |
very good condition, well maintained, worn out according to its age
still in production |
|
Disclaimer: | The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible. For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee. |
More Details:
two control panels Telekontrol
two reelstands Contiweb CW 6
two Harris infeed units
the Baldwin dampening system
cylinder and roller cylinder cleaning devices
drying oven VITS OT II length 5m
two Harris cooling cylinders
silicone unit Ryco 2038

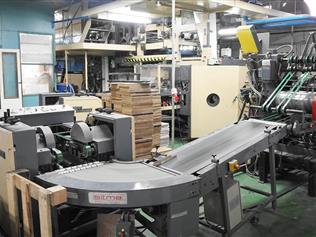

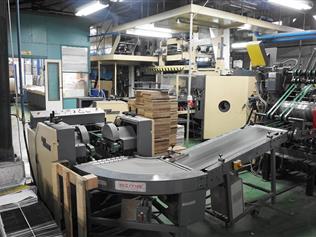

folder Harris 4D
two Crosfield cutting units
registry Grafikontrol CR1-W / O
Harris Telecontrol inking control
main drive Siemens 180 kW
plate bender
maximum print area 952.5 x 620.5 mm
