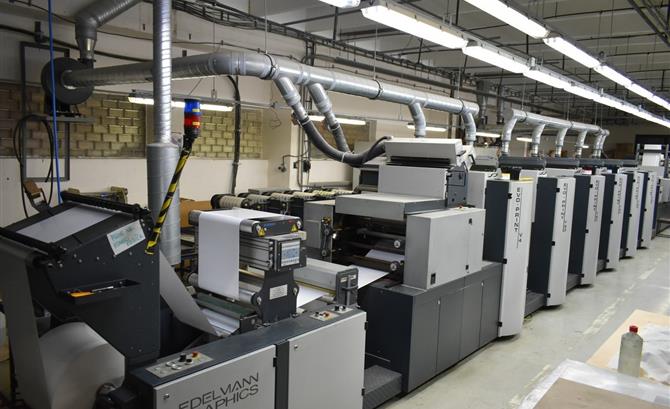

EDELMANN EVO - PRINTING V - 43 + GRAFOTRONIC 440

Heat-set Web Offset Printing Machine

#17086

EDELMANN EVO - PRINTING V - 43 + GRAFOTRONIC 440
Special Offer
Sold
A Curriculum Vitae (CV), (also spelled curriculum vitæ), provides an overview of a person's experience and other qualifications. In some countries, a CV is typically the first item that a potential employer encounters regarding a job seeker and is typically used to screen applicants, when seeking employment. Curriculum Vitae is a Latin expression which can be loosely translated as [the] course of [my] life.

In some way, the machines in our offer are like human job applicants. Some machines are almost new, like a freshly graduated person, while others already have many years of work experience behind themselves. Some machines are more suitable for one kind of activity, whereas others are more suitable for another kind of activity. But, what all the machines have in common is that, from various reasons, all of them are at the moment freed from their last services and are searching for the possibility of a new employment. So, through the CV of every particular machine, meet all the information we were able to get on them.

Basic information

  • Manufacturer: EDELMANN Printing Machines GmbH, Ernst-L.-Edelmann-Straße 6, 64743 Beerfelden, Germany
  • Production Year: 2010
  • Number of Colours: 6
  • Web-width: 435 mm
  • Counter: 3362 hours

More Details

  • format range from 15 1/2" to 30" with 1/ "
  • print widths of up to 427 mm
  • reel diameter in the unwinder up to 127 mm
  • E + L paper path control device
  • Tensiomatic paper path tension measuring device
  • central AIC remote control
  • automatic register
  • special surface treatment of inking rollers for UV inks
  • temperature control in ducts and oscillating rollers
  • UV drying with air cooling and 10 UV lamps
  • UV vapor extraction device
  • maximum speed 300 m / min.
  • die cut of registration system
  • cold pressing of metallic foil
  • laminating aggregate
  • flexo printing unit
  • format from 22" to 30" with 1/6"
  • Corona
  • cutting unit for self-adhesive labels
  • printing form bender
  • Grafotronic 440
  • maximum reel diameter 800 mm
  • viewing table Master with cutting and editing capabilities
  • shaft with five pairs of cutting discs
  • three knife cutting blade module

Condition of the Machine

  • Very good condition, well-maintained.
  • Still in production.
  • Availability: immediately
  • Sale Reason: production reduction
  • Work Experiences: paper printing and 38 μm polypropylene film
  • Spare parts: rollers in formats: 20", 22 4/6", 23", 26 5/6", 25 3/3 ", 28 2/6"
  • Disclaimer: The Condition of the Machine assessment presented in this CV was either obtained from the last machine operator or is based on an inspection performed by our employee, just to provide you with as much information as possible.
    For more certainty we recommend your own check or an assessment of an independent mechanic. We cannot provide you with any machine guarantee.
